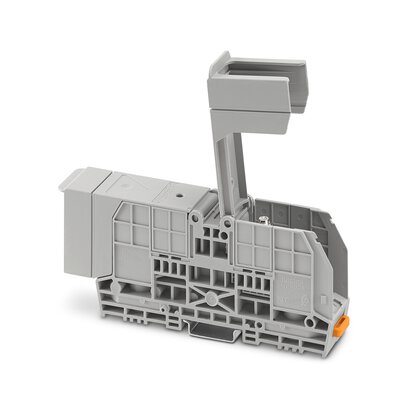

Phoenix Contact 3247973
Product Information
Number of Levels:
Single
Current Rating:
192A
Standards Met:
CCC, EAC, IECEx, UL
Voltage Rating:
1500 V
Series:
RBO 8-HC
Colour:
Grey
Termination Method:
Bolt
Model Number:
RBO 8-HC
Hazardous Area Certification:
ATEX
American Wire Gauge:
12 → 2/0AWG
Minimum Operating Temperature:
-60°C
Pitch:
29mm
Cable CSA:
6 → 70mm²
Maximum Operating Temperature:
+110°C
HTSUS:
8536.69.8000
RoHS Status:
ROHS3 Compliant
Termination Style:
Bolt and Nut
Material - Insulation:
Polyamide (PA), Nylon
Operating Temperature:
-
Type:
NEMA Open Construction
Number of Positions:
3
Wire Gauge or Range - mm²:
6-70mm²
Height (Max):
2.933" (74.50mm)
REACH Status:
REACH Unaffected
Housing Color:
Gray
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Stripping Length:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
192 A
Number of Levels:
1
Wire Gauge or Range - AWG:
2/0-8 AWG
Voltage - UL:
600 V
standardLeadTime:
8 Weeks
Terminal - Width:
-
Voltage - IEC:
1.5 kV
Features:
-
Mounting Type:
DIN Rail
Series:
CLIPLINE RBO
Length:
7.244" (184.00mm)
Current - UL:
175 A
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 3247973 on website for other similar products.
We accept all major payment methods for all products including ET14631172. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 3247973 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Specialized category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 3247973. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 3247973.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14631172 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14631172.
Yes. We ship 3247973 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 3247973. The product carries single levels. The product has a current rating of 192a. The product complies with all safety standards, such as ccc, eac, iecex, ul. Moreover, the product has a nominal 1500 v voltage rating. The product rbo 8-hc, is a highly preferred choice for users. It has a decent grey colour. It allows bolt termination method. It has a model number rbo 8-hc. The product is certified with atex hazardous area certification. Features 12 → 2/0awg - American Wire Gauge. Whereas, the minimum operating temperature of the product is -60°c. Moreover, the product is 29mm. The cross section area of the cable includes 6 → 70mm². It has a maximum operating temperature of +110°c. It is assigned with possible HTSUS value of 8536.69.8000. The product is rohs3 compliant. Moreover, it has bolt and nut terminal style. It is designed from highly reliable polyamide (pa), nylon insulating material. It comes in nema open construction configuration. The product carries possible position value of 3. A 6-70mm² of wire gauge. Additionally, the 2.933" (74.50mm) is the maximum height of the product. In addition, it is reach unaffected. It has an integral gray housing colour. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). An IEC current of 192 a. The product carries 1 levels. While 2/0-8 awg is its range or wire gauge. While 600 v is the typical voltage of the product. It has a long 8 weeks standard lead time. The nominal voltage of the product is 1.5 kv. The product is available in din rail configuration. The product clipline rbo, is a highly preferred choice for users. Its accurate length is 7.244" (184.00mm). The typical current includes 175 a. The product is designated with the ear99 code number.
