Number of Levels:
1
Fused:
No
Termination Type:
Push-in
Series:
PTTBS 1.5/S/2P-PV
Colour:
Grey
Minimum Operating Temperature:
-60°C
Minimum Wire Size AWG:
26 AWG
Terminal Block Current:
16A
Hazardous Area Certification:
No
Standards/Approvals:
Bureau Veritas, CSA, cUL, cULus, DNV GL, EAC, IEC 61984, IECEE CB, LR, NK, UL, VDE
Voltage:
500 V
Cable CSA:
0.14 to 1.5 mm²
Maximum Wire Size AWG:
14 AWG

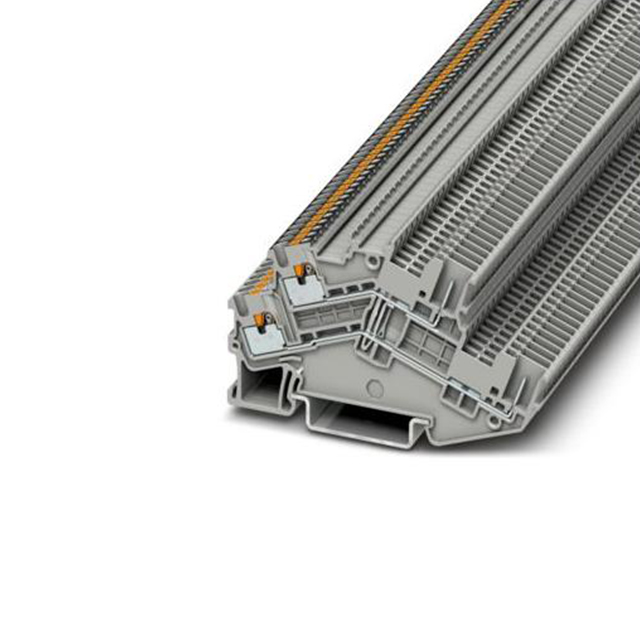

Product Type:
Double Level Terminal Block
Sub Type:
Plug-In
HTSUS:
8536.69.8000
RoHS Status:
RoHS Compliant
Termination Style:
Plug Receptacles, Push In, Spring
Material - Insulation:
Polyamide (PA), Nylon
Operating Temperature:
-
Type:
Plug Connection
Number of Positions:
4
Wire Gauge or Range - mm²:
0.14-1.5mm²
Height (Max):
2.461" (62.50mm)
title:
3214521
Housing Color:
Gray
Material Flammability Rating:
UL94 V-0
Manufacturer:
Phoenix Contact
Stripping Length:
8mm
Moisture Sensitivity Level (MSL):
Not Applicable
Current - IEC:
16 A
Number of Levels:
2; Connected
Wire Gauge or Range - AWG:
16-26 AWG
Voltage - UL:
300 V
standardLeadTime:
4 Weeks
Terminal - Width:
3.5mm
Voltage - IEC:
500 V
Features:
-
Mounting Type:
DIN Rail
Series:
CLIPLINE PTTBS
Length:
3.071" (78.00mm)
Packaging:
Bulk
Current - UL:
15 A
ECCN:
EAR99
