Number of Levels:
1
Fused:
No
Termination Type:
Push-in
Series:
PTTBS 1.5/S/2PPE
Colour:
Yellow, Green
Minimum Wire Size AWG:
26 AWG
Hazardous Area Certification:
No
Standards/Approvals:
cULus, cUL, CSA, Bureau Veritas, NK, EAC, DNV GL, UL, VDE, IEC 61984, LR, IECEE CB
Cable CSA:
0.14 to 1.5 mm²
Maximum Wire Size AWG:
14 AWG

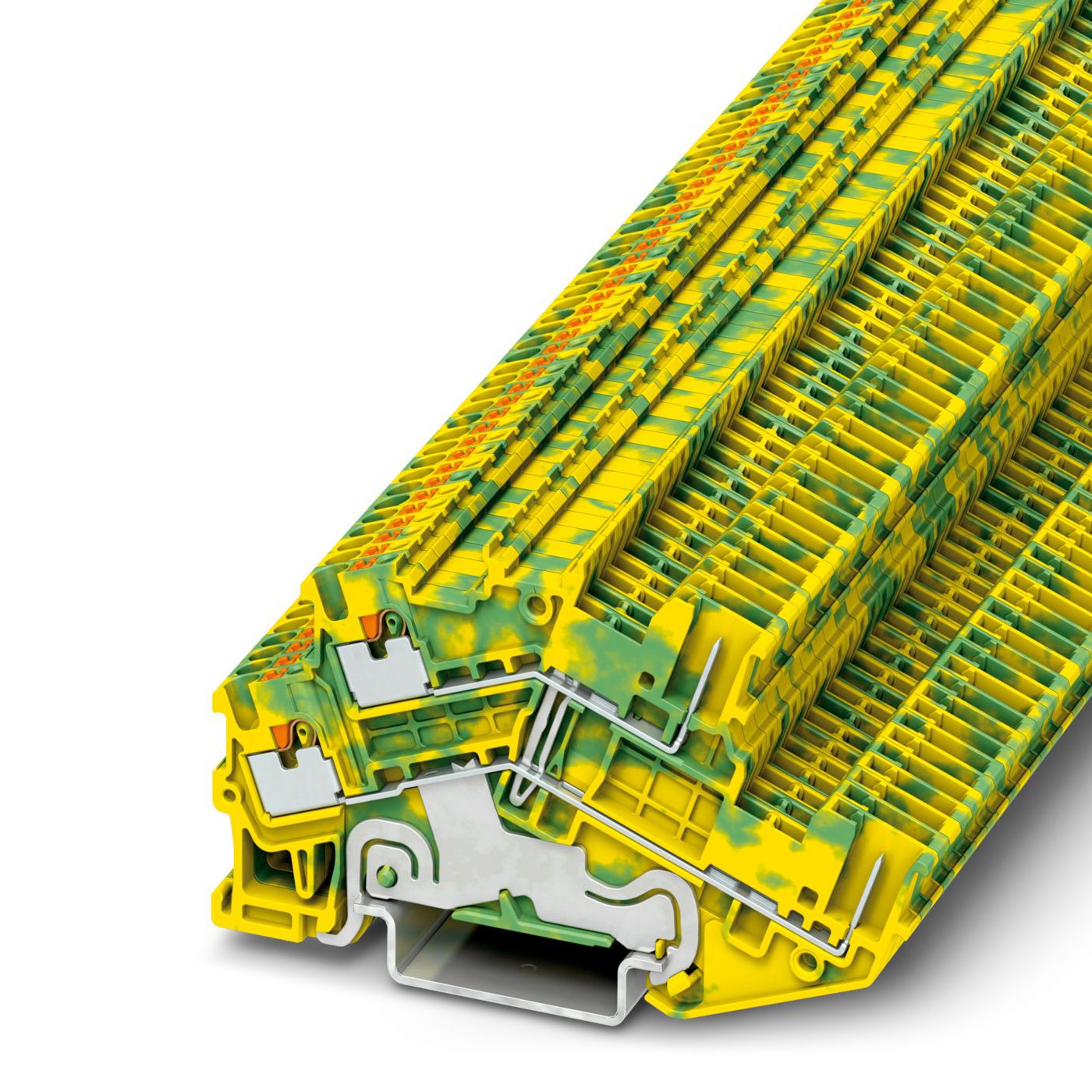

Product Type:
Double Level Terminal Block
Maximum Operating Temperature:
105°C
Minimum Operating Temperature:
-60°C
HTSUS:
8536.69.8000
RoHS Status:
RoHS Compliant
Termination Style:
Plug Receptacles, Push In, Spring
Material - Insulation:
Polyamide (PA), Nylon
Operating Temperature:
-
Type:
Plug Connection
Number of Positions:
4
Wire Gauge or Range - mm²:
0.14-1.5mm²
Height (Max):
2.461" (62.50mm)
Housing Color:
Green, Yellow
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Stripping Length:
8mm
Moisture Sensitivity Level (MSL):
Not Applicable
Length:
3.071" (78.00mm)
Number of Levels:
2; Connected and Grounded
Wire Gauge or Range - AWG:
14-26 AWG
standardLeadTime:
6 Weeks
Terminal - Width:
3.5mm
Features:
-
Mounting Type:
DIN Rail
Series:
CLIPLINE PTTBS
ECCN:
EAR99
