Number of Levels:
1
Fused:
No
Termination Type:
Plug-In
Series:
PT 1.5/S-TWIN/1P-PE
Colour:
Green, Yellow
Minimum Operating Temperature:
-60°C
Minimum Wire Size AWG:
26 AWG
Hazardous Area Certification:
No
Standards/Approvals:
CSA, Bureau Veritas, UL, NK, LR, IEC 61984, EAC, cULus, cUL
Terminal Block Current:
17.5A
Cable CSA:
0.14 to 1.5 mm²
Maximum Wire Size AWG:
14 AWG

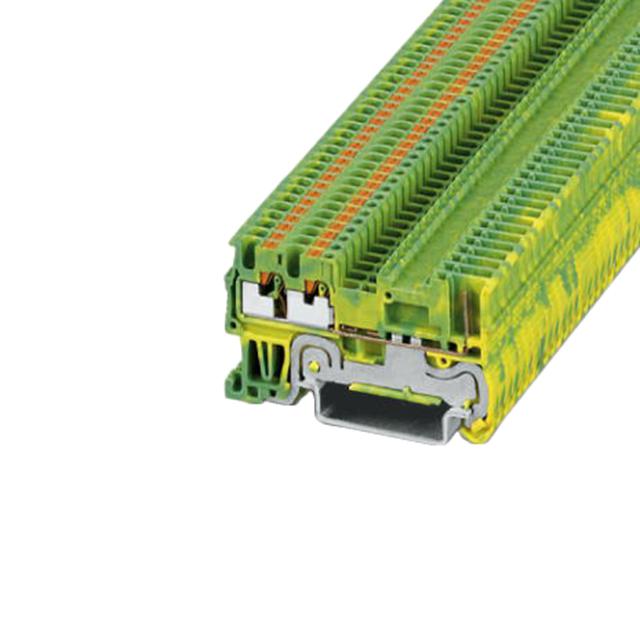

Product Type:
Earth Terminal Block
Maximum Operating Temperature:
105°C
Sub Type:
Single-Level
HTSUS:
8536.69.8000
RoHS Status:
RoHS Compliant
Termination Style:
Plug Receptacles, Push In, Spring
Material - Insulation:
Polyamide (PA), Nylon
Operating Temperature:
-
Type:
Plug Connection
Number of Positions:
3
Wire Gauge or Range - mm²:
0.14-1.5mm²
Height (Max):
1.555" (39.50mm)
Housing Color:
Green, Yellow
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Stripping Length:
8mm
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
2.165" (55.00mm)
Number of Levels:
1; Grounded
Wire Gauge or Range - AWG:
14-26 AWG
standardLeadTime:
4 Weeks
Terminal - Width:
3.5mm
Features:
-
Mounting Type:
DIN Rail
Series:
CLIPLINE PT
ECCN:
EAR99
