Number of Levels:
1
Fused:
No
Termination Type:
Screw
Series:
PTPOWER
Colour:
Black, Blue, Grey, Yellow
Minimum Operating Temperature:
-60°C
Minimum Wire Size AWG:
2 AWG
Terminal Block Current:
150A
Number of Positions:
5
Hazardous Area Certification:
No
Standards/Approvals:
cULus, DNV GL, EAC, UL, CSA, IEC 60947-7-1, Bureau Veritas, cUL
Voltage:
1 kV
Pitch:
20mm
Cable CSA:
70 mm²
Maximum Wire Size AWG:
2 AWG

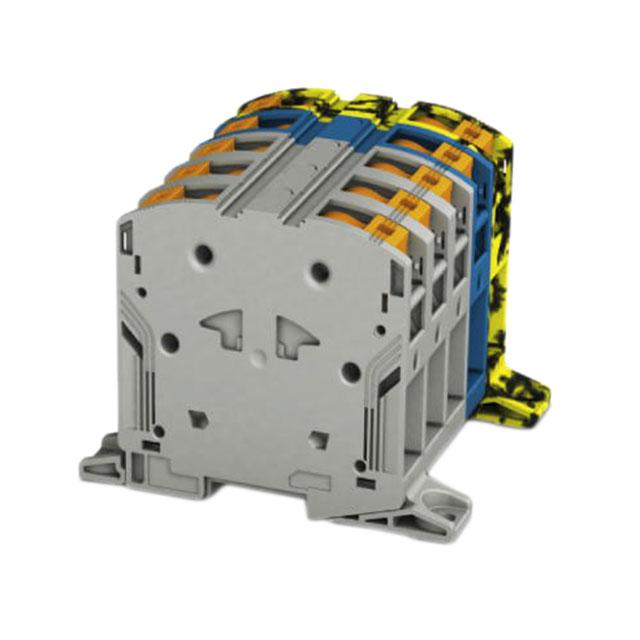

Product Type:
DIN Rail Terminal Block
Maximum Operating Temperature:
105°C
Sub Type:
High Current
HTSUS:
8536.69.8000
RoHS Status:
RoHS Compliant
Termination Style:
Push In, Spring
Material - Insulation:
Polyamide (PA), Nylon
Operating Temperature:
-
Type:
Middle
Number of Positions:
4
Wire Gauge or Range - mm²:
10-70mm²
Height (Max):
3.780" (96.00mm)
title:
3260060
Housing Color:
Black, Blue, Gray, Yellow
Material Flammability Rating:
UL94 V-0
Manufacturer:
Phoenix Contact
Stripping Length:
30mm
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
150 A
Number of Levels:
2
Wire Gauge or Range - AWG:
1/0-8 AWG
Voltage - UL:
1 kV
standardLeadTime:
4 Weeks
Terminal - Width:
60.0mm
Voltage - IEC:
1.5 kV
Features:
-
Mounting Type:
Direct Mount
Series:
CLIPLINE PTPOWER
Length:
3.976" (100.99mm)
Packaging:
Bulk
Current - UL:
140 A
ECCN:
EAR99
