FET Feature:
-
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 150°C (TJ)

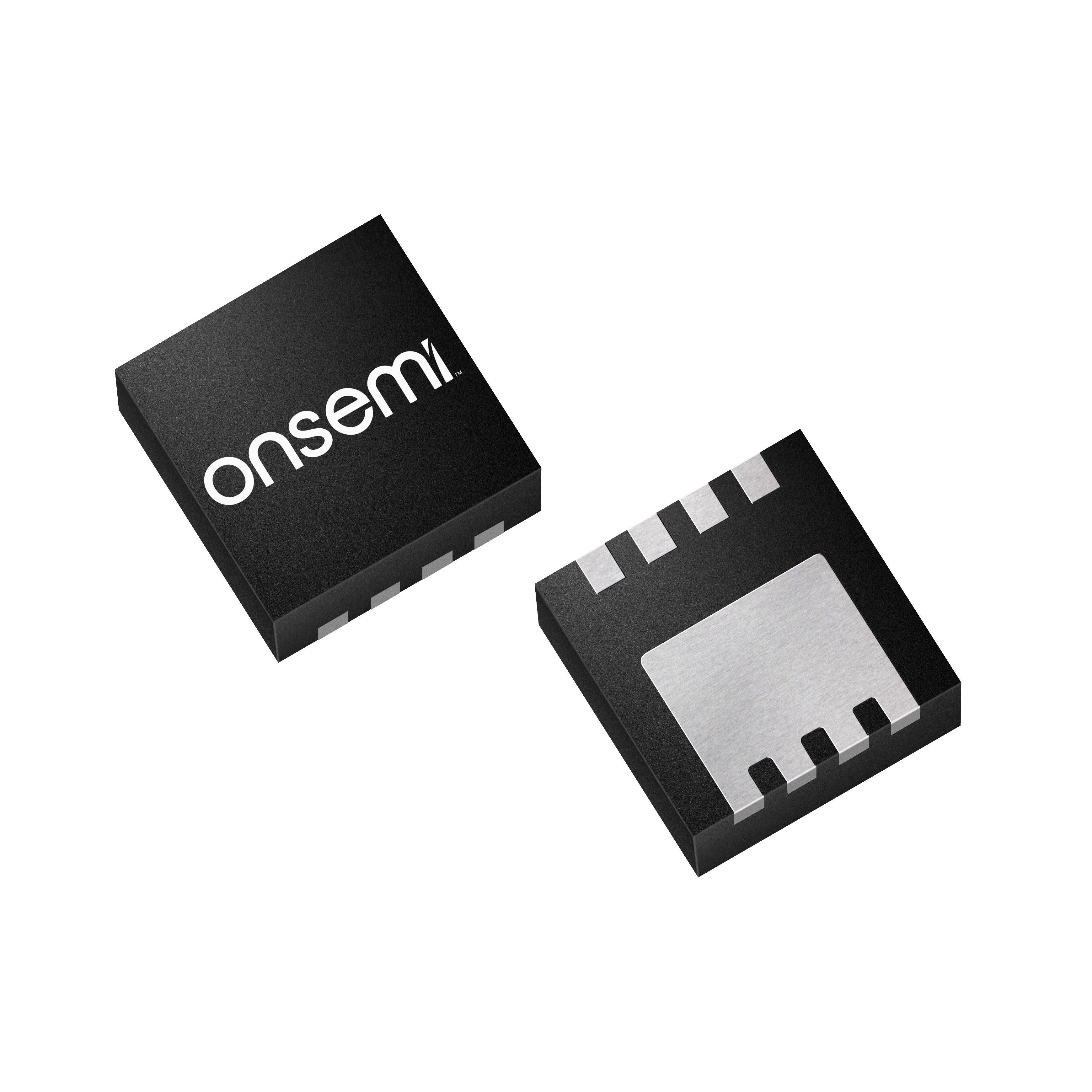

Package / Case:
8-PowerWDFN
Rds On (Max) @ Id, Vgs:
5mOhm @ 17A, 10V, 1mOhm @ 40A, 10V
Gate Charge (Qg) (Max) @ Vgs:
7.9nC @ 4.5V, 43nC @ 4.5V
Vgs(th) (Max) @ Id:
3V @ 1mA
REACH Status:
REACH Unaffected
Current - Continuous Drain (Id) @ 25°C:
11A (Ta), 57A (Tc), 25A (Ta), 165A (Tc)
Configuration:
2 N-Channel (Dual) Asymmetrical
Manufacturer:
onsemi
Drain to Source Voltage (Vdss):
30V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Qualification:
-
standardLeadTime:
16 Weeks
Input Capacitance (Ciss) (Max) @ Vds:
1224pF @ 15V, 6575pF @ 15V
Mounting Type:
Surface Mount
Grade:
-
Series:
-
Supplier Device Package:
8-PQFN (5x6)
Packaging:
Tape & Reel (TR)
Power - Max:
960mW (Ta), 25W (Tc), 1.04W (Ta), 41W (Tc)
Technology:
MOSFET (Metal Oxide)
