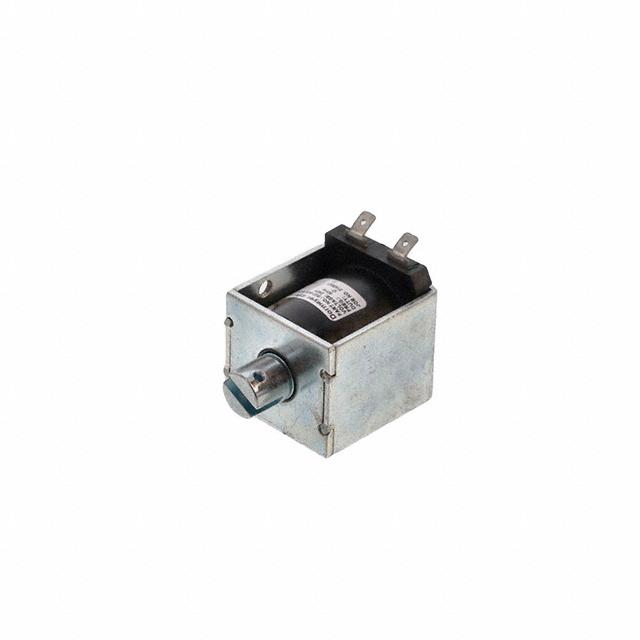

Ledex Dormeyer Saia, a Division of Johnson Electric B22-502-M-36

B22-502-M-36 Ledex Dormeyer Saia, a Division of Johnson Electric
B22-502-M-36
Ledex Dormeyer Saia, a Division of Johnson Electric

Product Information

HTSUS:
8505.90.7501
RoHS Status:
RoHS Compliant
Shaft Detail:
Clevis
Termination Style:
Quick Connect - 0.187" (4.7mm)
Power (Watts):
40 W
Type:
Open Frame (Pull)
Voltage - Rated:
240VAC
edacadModel:
B22-502-M-36 Models
edacadModelUrl:
/en/models/9676172
Diameter - Shaft:
0.500" (12.70mm)
Duty Cycle:
Intermittent
Package:
Bulk
Size / Dimension:
1.610" L x 1.310" W x 1.470" H (40.89mm x 33.27mm x 37.34mm)
standardLeadTime:
10 Weeks
DC Resistance (DCR):
163Ohm
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Stroke Length:
1.000" (25.40mm)
Mounting Type:
Chassis Mount
Series:
-
Bushing Thread:
-
Technology:
Electromechanical
Base Product Number:
B22-502
ECCN:
EAR99
Checking for live stock

This is manufactured by Ledex Dormeyer Saia, a Division of Johnson Electric. The manufacturer part number is B22-502-M-36. It is assigned with possible HTSUS value of 8505.90.7501. The product is rohs compliant. The shaft has a clevis outfit. Moreover, it has quick connect - 0.187" (4.7mm) terminal style. The product features power and watts of 40 w. It comes in open frame (pull) configuration. It also exhibits voltage rating of 240vac. Shaft with a 0.500" (12.70mm) diameter. Provides intermittent duty cycles. It is shipped in bulk package . The product's diameters include 1.610" l x 1.310" w x 1.470" h (40.89mm x 33.27mm x 37.34mm). It has a long 10 weeks standard lead time. It allows DC resistance of 163ohm. Its typical moisture sensitivity level is 1 (unlimited). The given stroke is 1.000" (25.40mm) long. The product is available in chassis mount configuration. This product use electromechanical technology. Moreover, it corresponds to b22-502, a base product number of the product. The product is designated with the ear99 code number.
