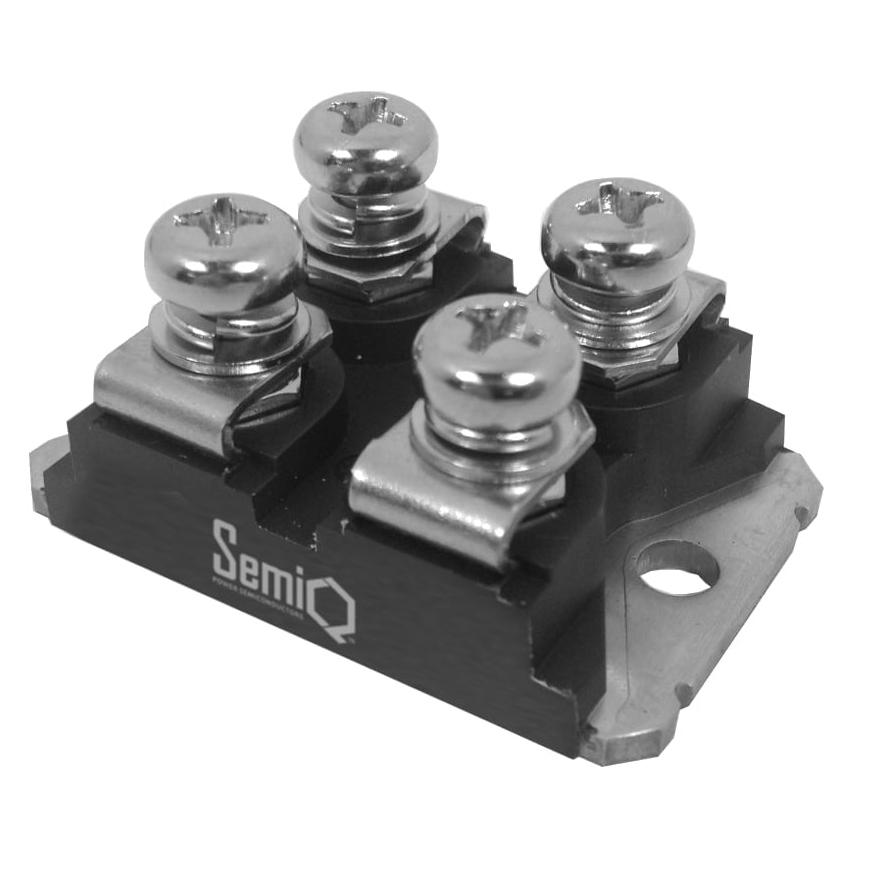

SemiQ GCMX040B120S1-E1
Product Information
FET Feature:
-
HTSUS:
8541.29.0095
Vgs(th) (Max) @ Id:
4V @ 10mA
Operating Temperature:
-55°C ~ 175°C (TJ)
Package / Case:
SOT-227-4, miniBLOC
Rds On (Max) @ Id, Vgs:
52mOhm @ 40A, 20V
Gate Charge (Qg) (Max) @ Vgs:
121 nC @ 20 V
RoHS Status:
ROHS3 Compliant
REACH Status:
REACH Affected
FET Type:
N-Channel
Drive Voltage (Max Rds On, Min Rds On):
20V
Package:
Tube
Drain to Source Voltage (Vdss):
1200 V
Vgs (Max):
+25V, -10V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Power Dissipation (Max):
242W (Tc)
Input Capacitance (Ciss) (Max) @ Vds:
3185 pF @ 1000 V
standardLeadTime:
30 Weeks
Mounting Type:
Chassis Mount
Series:
-
Supplier Device Package:
SOT-227
Current - Continuous Drain (Id) @ 25°C:
57A (Tc)
Technology:
SiC (Silicon Carbide Junction Transistor)
Base Product Number:
GCMX040
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search GCMX040B120S1-E1 on website for other similar products.
We accept all major payment methods for all products including ET24501868. Please check your shopping cart at the time of order.
You can order SemiQ brand products with GCMX040B120S1-E1 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Single FETs, MOSFETs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of SemiQ GCMX040B120S1-E1. You can also check on our website or by contacting our customer support team for further order details on SemiQ GCMX040B120S1-E1.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET24501868 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "SemiQ" products on our website by using Enrgtech's Unique Manufacturing Part Number ET24501868.
Yes. We ship GCMX040B120S1-E1 Internationally to many countries around the world.
This is manufactured by SemiQ. The manufacturer part number is GCMX040B120S1-E1. It is assigned with possible HTSUS value of 8541.29.0095. The typical Vgs (th) (max) of the product is 4v @ 10ma. The product has -55°c ~ 175°c (tj) operating temperature range. Moreover, the product comes in sot-227-4, minibloc. It has a maximum Rds On and voltage of 52mohm @ 40a, 20v. The maximum gate charge and given voltages include 121 nc @ 20 v. The product is rohs3 compliant. In addition, it is reach affected. It carries FET type n-channel. The drive voltage (maximum and minimum Rds On) of the product includes 20v. It is shipped in tube package . The product has a 1200 v drain to source voltage. The maximum Vgs rate is +25v, -10v. Its typical moisture sensitivity level is 1 (unlimited). The product carries maximum power dissipation 242w (tc). The product's input capacitance at maximum includes 3185 pf @ 1000 v. It has a long 30 weeks standard lead time. The product is available in chassis mount configuration. sot-227 is the supplier device package value. The continuous current drain at 25°C is 57a (tc). This product use sic (silicon carbide junction transistor) technology. Moreover, it corresponds to gcmx040, a base product number of the product. The product is designated with the ear99 code number.
