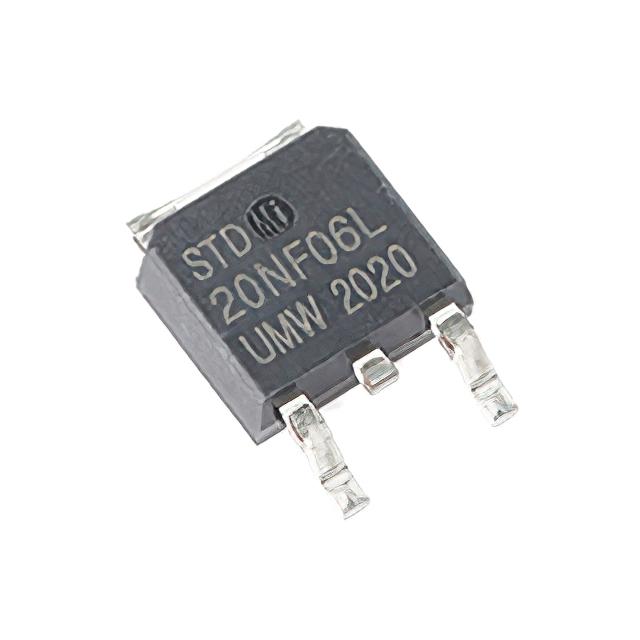

This is manufactured by UMW. The manufacturer part number is STD20NF06L. It is assigned with possible HTSUS value of 8541.29.0095. The typical Vgs (th) (max) of the product is 2.5v @ 250µa. The product has -55°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in to-252-3, dpak (2 leads + tab), sc-63. It has a maximum Rds On and voltage of 35mohm @ 15a, 10v. The maximum gate charge and given voltages include 25 nc @ 10 v. The product is rohs3 compliant. It carries FET type n-channel. The drive voltage (maximum and minimum Rds On) of the product includes 4.5v, 10v. It is shipped in tape & reel (tr) package . The product has a 60 v drain to source voltage. The maximum Vgs rate is ±20v. Its typical moisture sensitivity level is 1 (unlimited). The product carries maximum power dissipation 55w (tc). The product's input capacitance at maximum includes 1562 pf @ 25 v. It has a long 1 weeks standard lead time. The product is available in surface mount configuration. The product umw, is a highly preferred choice for users. to-252 (dpak) is the supplier device package value. The continuous current drain at 25°C is 30a (tc). This product use mosfet (metal oxide) technology. The product is designated with the ear99 code number.
For more information please check the datasheets.
