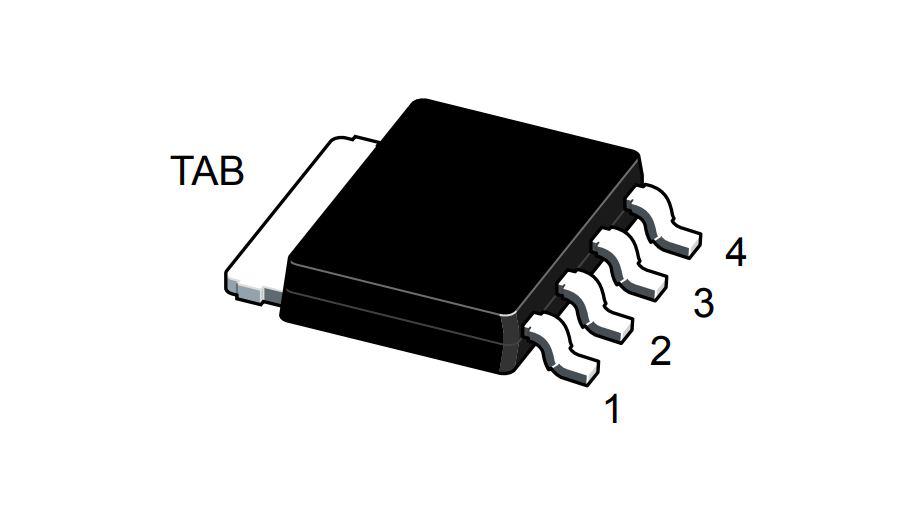

This is N-Channel MOSFET 100 A 40 V LFPAK manufactured by STMicroelectronics. The manufacturer part number is STK130N4LF7AG. It has a maximum of 40 v drain source voltage. While 100 a of maximum continuous drain current. The product is available in surface mount configuration. The product is available in [Cannel Type] channel. The package is a sort of lfpak, sot-669. It contains 4 pins. It is assigned with possible HTSUS value of 8541.29.0095. The product is rohs3 compliant. The product has -55°c ~ 175°c (tj) operating temperature range. Moreover, the product comes in sc-100, sot-669. It has a maximum Rds On and voltage of 3mohm @ 50a, 10v. The maximum gate charge and given voltages include 26 nc @ 10 v. The typical Vgs (th) (max) of the product is 2.5v @ 250µa. In addition, it is reach unaffected. It carries FET type n-channel. The drive voltage (maximum and minimum Rds On) of the product includes 4.5v, 10v. It is shipped in tape & reel (tr) package . The product has a 40 v drain to source voltage. The maximum Vgs rate is ±20v. Its typical moisture sensitivity level is 1 (unlimited). The product carries maximum power dissipation 105w (tc). The product's input capacitance at maximum includes 1850 pf @ 25 v. The product is automotive, a grade of class. lfpak56, power-so8 is the supplier device package value. The continuous current drain at 25°C is 100a (tc). This product use mosfet (metal oxide) technology. Moreover, it corresponds to stk130n, a base product number of the product. The product is designated with the ear99 code number.
Datasheet - STK130N4LF7AG(Technical Reference)
EOL 16/Jan/2024(PCN Obsolescence/ EOL)
STK130N4LF7AG(Datasheets)
Reviews
Be the first
to
review.
Don’t hesitate to ask questions for
better
clarification.
Related products
FAQs
Yes. You can also search STK130N4LF7AG on website for other similar products.
We accept all major payment methods for all products including ET23139736. Please check your shopping cart at the time of order.
You can order STMicroelectronics brand products with STK130N4LF7AG directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Single FETs, MOSFETs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of N-Channel MOSFET, 100 A, 40 V LFPAK STMicroelectronics STK130N4LF7AG. You can also check on our website or by contacting our customer support team for further order details on N-Channel MOSFET, 100 A, 40 V LFPAK STMicroelectronics STK130N4LF7AG.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET23139736 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "STMicroelectronics" products on our website by using Enrgtech's Unique Manufacturing Part Number ET23139736.
Yes. We ship STK130N4LF7AG Internationally to many countries around the world.
This is N-Channel MOSFET 100 A 40 V LFPAK manufactured by STMicroelectronics. The manufacturer part number is STK130N4LF7AG. It has a maximum of 40 v drain source voltage. While 100 a of maximum continuous drain current. The product is available in surface mount configuration. The product is available in [Cannel Type] channel. The package is a sort of lfpak, sot-669. It contains 4 pins. It is assigned with possible HTSUS value of 8541.29.0095. The product is rohs3 compliant. The product has -55°c ~ 175°c (tj) operating temperature range. Moreover, the product comes in sc-100, sot-669. It has a maximum Rds On and voltage of 3mohm @ 50a, 10v. The maximum gate charge and given voltages include 26 nc @ 10 v. The typical Vgs (th) (max) of the product is 2.5v @ 250µa. In addition, it is reach unaffected. It carries FET type n-channel. The drive voltage (maximum and minimum Rds On) of the product includes 4.5v, 10v. It is shipped in tape & reel (tr) package . The product has a 40 v drain to source voltage. The maximum Vgs rate is ±20v. Its typical moisture sensitivity level is 1 (unlimited). The product carries maximum power dissipation 105w (tc). The product's input capacitance at maximum includes 1850 pf @ 25 v. The product is automotive, a grade of class. lfpak56, power-so8 is the supplier device package value. The continuous current drain at 25°C is 100a (tc). This product use mosfet (metal oxide) technology. Moreover, it corresponds to stk130n, a base product number of the product. The product is designated with the ear99 code number.
