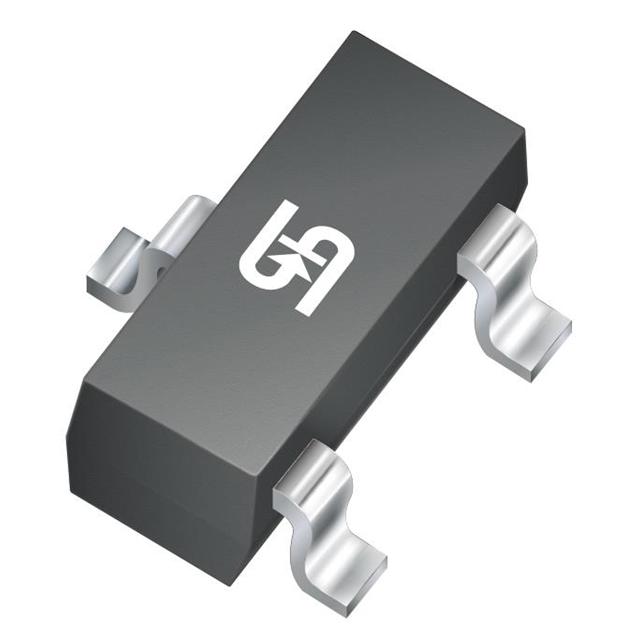

Taiwan Semiconductor Corporation TSM2N7002AKCX RFG
Product Information
FET Feature:
-
HTSUS:
8541.21.0095
Vgs(th) (Max) @ Id:
2.5V @ 250µA
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
TO-236-3, SC-59, SOT-23-3
Rds On (Max) @ Id, Vgs:
2.5Ohm @ 300mA, 10V
Gate Charge (Qg) (Max) @ Vgs:
1.65 nC @ 10 V
RoHS Status:
ROHS3 Compliant
REACH Status:
REACH Unaffected
edacadModel:
TSM2N7002AKCX RFG Models
FET Type:
N-Channel
Drive Voltage (Max Rds On, Min Rds On):
4.5V, 10V
edacadModelUrl:
/en/models/15842554
Package:
Tape & Reel (TR)
Drain to Source Voltage (Vdss):
60 V
Vgs (Max):
±20V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Power Dissipation (Max):
357mW (Ta)
Input Capacitance (Ciss) (Max) @ Vds:
20 pF @ 30 V
standardLeadTime:
4 Weeks
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
SOT-23
Current - Continuous Drain (Id) @ 25°C:
300mA (Ta)
Technology:
MOSFET (Metal Oxide)
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search TSM2N7002AKCX RFG on website for other similar products.
We accept all major payment methods for all products including ET22751097. Please check your shopping cart at the time of order.
You can order Taiwan Semiconductor Corporation brand products with TSM2N7002AKCX RFG directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Single FETs, MOSFETs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Taiwan Semiconductor Corporation TSM2N7002AKCX RFG. You can also check on our website or by contacting our customer support team for further order details on Taiwan Semiconductor Corporation TSM2N7002AKCX RFG.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET22751097 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Taiwan Semiconductor Corporation" products on our website by using Enrgtech's Unique Manufacturing Part Number ET22751097.
Yes. We ship TSM2N7002AKCX RFG Internationally to many countries around the world.
This is manufactured by Taiwan Semiconductor Corporation. The manufacturer part number is TSM2N7002AKCX RFG. It is assigned with possible HTSUS value of 8541.21.0095. The typical Vgs (th) (max) of the product is 2.5v @ 250µa. The product has -55°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in to-236-3, sc-59, sot-23-3. It has a maximum Rds On and voltage of 2.5ohm @ 300ma, 10v. The maximum gate charge and given voltages include 1.65 nc @ 10 v. The product is rohs3 compliant. In addition, it is reach unaffected. It carries FET type n-channel. The drive voltage (maximum and minimum Rds On) of the product includes 4.5v, 10v. It is shipped in tape & reel (tr) package . The product has a 60 v drain to source voltage. The maximum Vgs rate is ±20v. Its typical moisture sensitivity level is 1 (unlimited). The product carries maximum power dissipation 357mw (ta). The product's input capacitance at maximum includes 20 pf @ 30 v. It has a long 4 weeks standard lead time. The product is available in surface mount configuration. sot-23 is the supplier device package value. The continuous current drain at 25°C is 300ma (ta). This product use mosfet (metal oxide) technology. The product is designated with the ear99 code number.
