Forward Voltage Vf:
2.7V
Width:
15.6 mm
Automotive Standard:
No
Typical Gate Charge Qg @ Vgs:
150nC

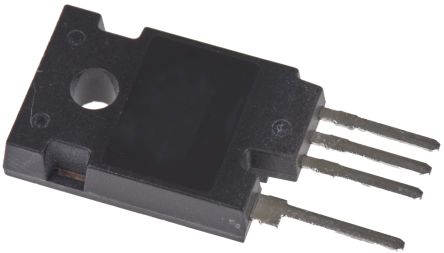

Package Type:
Hip-247
Maximum Continuous Drain Current Id:
91A
Product Type:
MOSFET
Maximum Drain Source Resistance Rds:
30mΩ
Maximum Operating Temperature:
200°C
Maximum Drain Source Voltage Vds:
1200V
Channel Type:
Type N
Length:
34.8mm
Standards/Approvals:
No
Pin Count:
4
Mount Type:
Through Hole
Maximum Power Dissipation Pd:
547W
Channel Mode:
Enhancement
Maximum Gate Source Voltage Vgs:
22 V
Series:
SCTWA70N120G2V-4
Height:
5mm
Minimum Operating Temperature:
-55°C
FET Feature:
-
HTSUS:
8541.29.0095
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 200°C (TJ)
Package / Case:
TO-247-4
Rds On (Max) @ Id, Vgs:
30mOhm @ 50A, 18V
Gate Charge (Qg) (Max) @ Vgs:
150 nC @ 18 V
Vgs(th) (Max) @ Id:
4.9V @ 1mA
REACH Status:
REACH Unaffected
edacadModel:
SCTWA70N120G2V-4 Models
FET Type:
N-Channel
Drive Voltage (Max Rds On, Min Rds On):
18V
edacadModelUrl:
/en/models/18085270
Drain to Source Voltage (Vdss):
1200 V
Vgs (Max):
+22V, -10V
standardLeadTime:
32 Weeks
Input Capacitance (Ciss) (Max) @ Vds:
3540 pF @ 800 V
Mounting Type:
Through Hole
Series:
-
Supplier Device Package:
TO-247-4
Packaging:
Bulk
Current - Continuous Drain (Id) @ 25°C:
91A (Tc)
Power Dissipation (Max):
547W
Technology:
MOSFET (Metal Oxide)
Base Product Number:
SCTWA70
ECCN:
EAR99
