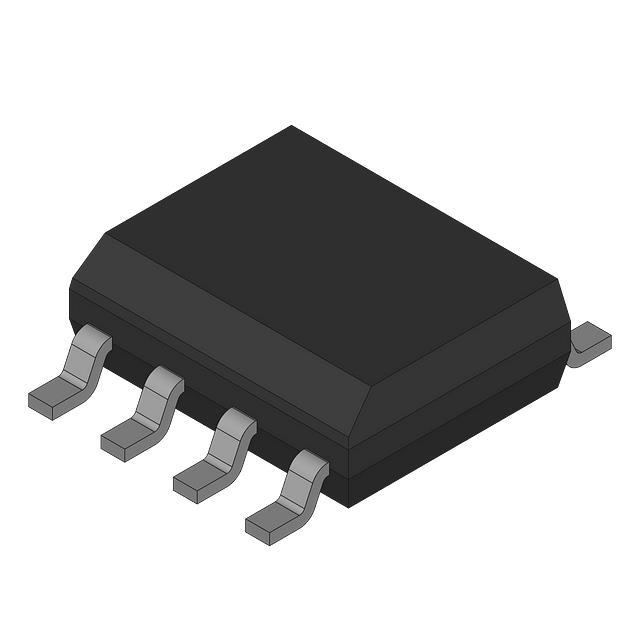

Fairchild Semiconductor FDS6690A-NBNP006
Product Information
FET Feature:
-
HTSUS:
8541.29.0095
Vgs(th) (Max) @ Id:
3V @ 250µA
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
8-SOIC (0.154", 3.90mm Width)
Gate Charge (Qg) (Max) @ Vgs:
16 nC @ 5 V
REACH Status:
REACH Unaffected
Rds On (Max) @ Id, Vgs:
12.5mOhm @ 11A, 10V
FET Type:
N-Channel
Drive Voltage (Max Rds On, Min Rds On):
4.5V, 10V
Package:
Bulk
Drain to Source Voltage (Vdss):
30 V
Vgs (Max):
±20V
Moisture Sensitivity Level (MSL):
Vendor Undefined
Power Dissipation (Max):
1W (Ta)
Input Capacitance (Ciss) (Max) @ Vds:
1205 pF @ 15 V
Qualification:
-
Mounting Type:
Surface Mount
Grade:
-
Series:
PowerTrench®
Supplier Device Package:
8-SOIC
Current - Continuous Drain (Id) @ 25°C:
11A (Ta)
Technology:
MOSFET (Metal Oxide)
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search FDS6690A-NBNP006 on website for other similar products.
We accept all major payment methods for all products including ET22370787. Please check your shopping cart at the time of order.
You can order Fairchild Semiconductor brand products with FDS6690A-NBNP006 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Single FETs, MOSFETs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Fairchild Semiconductor FDS6690A-NBNP006. You can also check on our website or by contacting our customer support team for further order details on Fairchild Semiconductor FDS6690A-NBNP006.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET22370787 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Fairchild Semiconductor" products on our website by using Enrgtech's Unique Manufacturing Part Number ET22370787.
Yes. We ship FDS6690A-NBNP006 Internationally to many countries around the world.
This is manufactured by Fairchild Semiconductor. The manufacturer part number is FDS6690A-NBNP006. It is assigned with possible HTSUS value of 8541.29.0095. The typical Vgs (th) (max) of the product is 3v @ 250µa. The product has -55°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in 8-soic (0.154", 3.90mm width). The maximum gate charge and given voltages include 16 nc @ 5 v. In addition, it is reach unaffected. It has a maximum Rds On and voltage of 12.5mohm @ 11a, 10v. It carries FET type n-channel. The drive voltage (maximum and minimum Rds On) of the product includes 4.5v, 10v. It is shipped in bulk package . The product has a 30 v drain to source voltage. The maximum Vgs rate is ±20v. Its typical moisture sensitivity level is vendor undefined. The product carries maximum power dissipation 1w (ta). The product's input capacitance at maximum includes 1205 pf @ 15 v. The product is available in surface mount configuration. The product powertrench®, is a highly preferred choice for users. 8-soic is the supplier device package value. The continuous current drain at 25°C is 11a (ta). This product use mosfet (metal oxide) technology. The product is designated with the ear99 code number.
