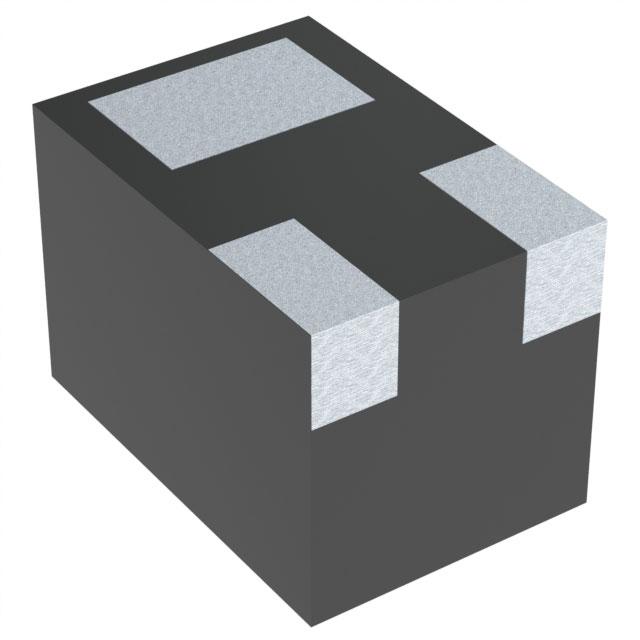

P-Channel MOSFET Transistor, 127 mA, 20 V Depletion, 3-Pin xDFN3 onsemi NTNS2K1P021ZTCG
Product Information
Maximum Drain Source Voltage:
20 V
Maximum Continuous Drain Current:
127 mA
Channel Mode:
Depletion
Series:
NTN
Channel Type:
P
Maximum Gate Threshold Voltage:
1V
Maximum Drain Source Resistance:
10 Ω
Package Type:
xDFN3
Number of Elements per Chip:
1
Pin Count:
3
FET Feature:
-
HTSUS:
8541.21.0095
Vgs(th) (Max) @ Id:
1V @ 250µA
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
3-XFDFN
Rds On (Max) @ Id, Vgs:
5Ohm @ 100mA, 4.5V
RoHS Status:
ROHS3 Compliant
REACH Status:
REACH Unaffected
FET Type:
P-Channel
Drive Voltage (Max Rds On, Min Rds On):
1.5V, 4.5V
Package:
Tape & Reel (TR)
Drain to Source Voltage (Vdss):
20 V
Vgs (Max):
±8V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Power Dissipation (Max):
125mW (Ta)
Input Capacitance (Ciss) (Max) @ Vds:
12800 pF @ 15 V
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
3-XDFN (0.42x0.62)
Current - Continuous Drain (Id) @ 25°C:
127mA (Ta)
Technology:
MOSFET (Metal Oxide)
Base Product Number:
NTNS2
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search NTNS2K1P021ZTCG on website for other similar products.
We accept all major payment methods for all products including ET21576807. Please check your shopping cart at the time of order.
You can order onsemi brand products with NTNS2K1P021ZTCG directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Single FETs, MOSFETs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of P-Channel MOSFET Transistor, 127 mA, 20 V Depletion, 3-Pin xDFN3 onsemi NTNS2K1P021ZTCG. You can also check on our website or by contacting our customer support team for further order details on P-Channel MOSFET Transistor, 127 mA, 20 V Depletion, 3-Pin xDFN3 onsemi NTNS2K1P021ZTCG.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET21576807 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "onsemi" products on our website by using Enrgtech's Unique Manufacturing Part Number ET21576807.
Yes. We ship NTNS2K1P021ZTCG Internationally to many countries around the world.
This is P-Channel MOSFET Transistor 127 mA 20 V Depletion 3-Pin xDFN3 manufactured by onsemi. The manufacturer part number is NTNS2K1P021ZTCG. It has a maximum of 20 v drain source voltage. While 127 ma of maximum continuous drain current. The product carries depletion channel mode. The product ntn, is a highly preferred choice for users. The product is available in [Cannel Type] channel. The product carries 1v of maximum gate threshold voltage. It provides up to 10 ω maximum drain source resistance. The package is a sort of xdfn3. It consists of 1 elements per chip. It contains 3 pins. It is assigned with possible HTSUS value of 8541.21.0095. The typical Vgs (th) (max) of the product is 1v @ 250µa. The product has -55°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in 3-xfdfn. It has a maximum Rds On and voltage of 5ohm @ 100ma, 4.5v. The product is rohs3 compliant. In addition, it is reach unaffected. It carries FET type p-channel. The drive voltage (maximum and minimum Rds On) of the product includes 1.5v, 4.5v. It is shipped in tape & reel (tr) package . The product has a 20 v drain to source voltage. The maximum Vgs rate is ±8v. Its typical moisture sensitivity level is 1 (unlimited). The product carries maximum power dissipation 125mw (ta). The product's input capacitance at maximum includes 12800 pf @ 15 v. The product is available in surface mount configuration. 3-xdfn (0.42x0.62) is the supplier device package value. The continuous current drain at 25°C is 127ma (ta). This product use mosfet (metal oxide) technology. Moreover, it corresponds to ntns2, a base product number of the product. The product is designated with the ear99 code number.
