Automotive Standard:
No
Maximum Power Dissipation Pd:
130W
Maximum Drain Source Voltage Vds:
1200V
Channel Mode:
Enhancement
Maximum Gate Source Voltage Vgs:
30 V
Series:
MDmesh K5
Forward Voltage Vf:
1.5V
Channel Type:
Type N
Typical Gate Charge Qg @ Vgs:
13.7nC

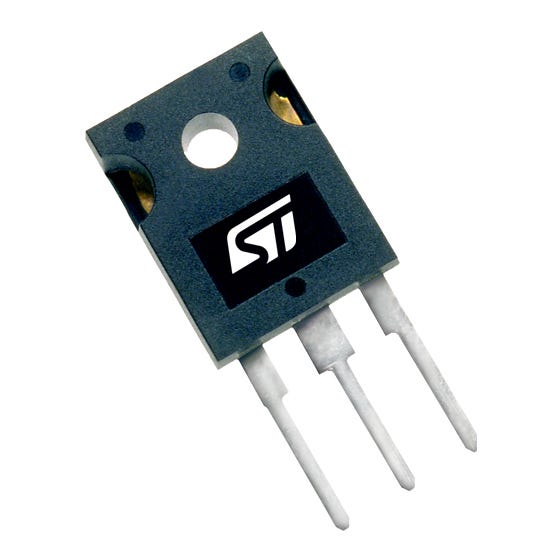

Package Type:
TO-247
Minimum Operating Temperature:
-55°C
Maximum Drain Source Resistance Rds:
2Ω
Standards/Approvals:
RoHS
Maximum Continuous Drain Current Id:
6A
Product Type:
MOSFET
Maximum Operating Temperature:
150°C
Pin Count:
3
FET Feature:
-
HTSUS:
8541.29.0095
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
TO-247-3
Rds On (Max) @ Id, Vgs:
2Ohm @ 2.5A, 10V
Gate Charge (Qg) (Max) @ Vgs:
13.7 nC @ 10 V
Vgs(th) (Max) @ Id:
5V @ 100µA
REACH Status:
REACH Unaffected
edacadModel:
STW8N120K5 Models
FET Type:
N-Channel
Drive Voltage (Max Rds On, Min Rds On):
10V
edacadModelUrl:
/en/models/8259611
Drain to Source Voltage (Vdss):
1200 V
Vgs (Max):
±30V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Power Dissipation (Max):
130W (Tc)
standardLeadTime:
16 Weeks
Input Capacitance (Ciss) (Max) @ Vds:
505 pF @ 100 V
Mounting Type:
Through Hole
Series:
MDmesh™ K5
Supplier Device Package:
TO-247
Packaging:
Tube
Current - Continuous Drain (Id) @ 25°C:
6A (Tc)
Technology:
MOSFET (Metal Oxide)
Base Product Number:
STW8
ECCN:
EAR99
