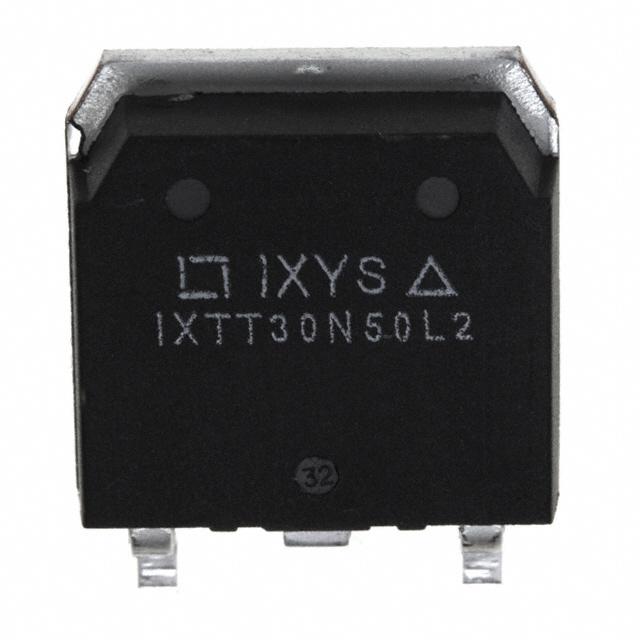

IXYS IXTT30N50L2

IXTT30N50L2 IXYS
IXTT30N50L2
IXYS

Product Information

FET Feature:
-
HTSUS:
8541.29.0095
Vgs(th) (Max) @ Id:
4.5V @ 250µA
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
Rds On (Max) @ Id, Vgs:
200mOhm @ 15A, 10V
Gate Charge (Qg) (Max) @ Vgs:
240 nC @ 10 V
RoHS Status:
ROHS3 Compliant
REACH Status:
REACH Unaffected
FET Type:
N-Channel
Drive Voltage (Max Rds On, Min Rds On):
10V
Package:
Tube
Drain to Source Voltage (Vdss):
500 V
Vgs (Max):
±20V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Power Dissipation (Max):
400W (Tc)
Input Capacitance (Ciss) (Max) @ Vds:
8100 pF @ 25 V
standardLeadTime:
43 Weeks
Mounting Type:
Surface Mount
Series:
Linear L2™
Supplier Device Package:
TO-268AA
Current - Continuous Drain (Id) @ 25°C:
30A (Tc)
Technology:
MOSFET (Metal Oxide)
Base Product Number:
IXTT30
ECCN:
EAR99
Checking for live stock

This is manufactured by IXYS. The manufacturer part number is IXTT30N50L2. It is assigned with possible HTSUS value of 8541.29.0095. The typical Vgs (th) (max) of the product is 4.5v @ 250µa. The product has -55°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in to-268-3, d³pak (2 leads + tab), to-268aa. It has a maximum Rds On and voltage of 200mohm @ 15a, 10v. The maximum gate charge and given voltages include 240 nc @ 10 v. The product is rohs3 compliant. In addition, it is reach unaffected. It carries FET type n-channel. The drive voltage (maximum and minimum Rds On) of the product includes 10v. It is shipped in tube package . The product has a 500 v drain to source voltage. The maximum Vgs rate is ±20v. Its typical moisture sensitivity level is 1 (unlimited). The product carries maximum power dissipation 400w (tc). The product's input capacitance at maximum includes 8100 pf @ 25 v. It has a long 43 weeks standard lead time. The product is available in surface mount configuration. The product linear l2™, is a highly preferred choice for users. to-268aa is the supplier device package value. The continuous current drain at 25°C is 30a (tc). This product use mosfet (metal oxide) technology. Moreover, it corresponds to ixtt30, a base product number of the product. The product is designated with the ear99 code number.
