Manufacturer Standard Lead Time:
22 Weeks
Detailed Description:

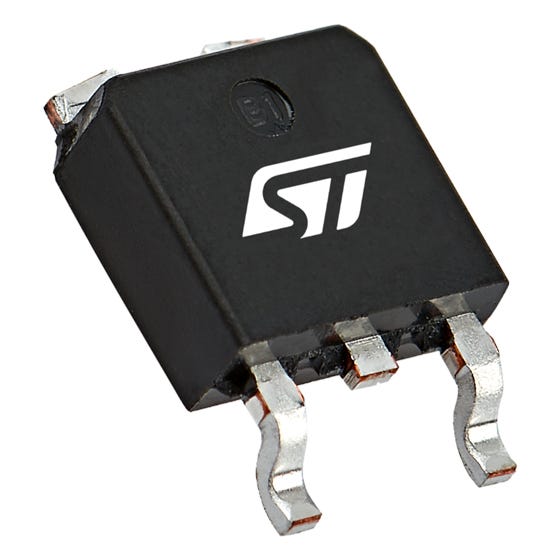

N-Channel 400V 3A (Tc) 45W (Tc) Surface Mount DPAK
Vgs(th) (Max) @ Id:
4.5V @ 50µA
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
TO-252-3, DPak (2 Leads + Tab), SC-63
Base Part Number:
STD5NK40
Gate Charge (Qg) (Max) @ Vgs:
17nC @ 10V
Rds On (Max) @ Id, Vgs:
1.8Ohm @ 1.5A, 10V
FET Type:
N-Channel
Drive Voltage (Max Rds On, Min Rds On):
10V
Manufacturer:
STMicroelectronics
Drain to Source Voltage (Vdss):
400V
Vgs (Max):
±30V
Input Capacitance (Ciss) (Max) @ Vds:
305pF @ 25V
Mounting Type:
Surface Mount
Series:
SuperMESH™
Supplier Device Package:
DPAK
Packaging:
Cut Tape (CT)
Current - Continuous Drain (Id) @ 25°C:
3A (Tc)
Customer Reference:
Power Dissipation (Max):
45W (Tc)
Technology:
MOSFET (Metal Oxide)
Automotive Standard:
No
Product Type:
MOSFET
Maximum Drain Source Voltage Vds:
400V
Channel Mode:
Enhancement
Typical Gate Charge Qg @ Vgs:
11.7nC
Series:
SuperMESH
Maximum Gate Source Voltage Vgs:
±30 V
Forward Voltage Vf:
1.6V
Height:
2.4mm
Width:
6.6 mm
Length:
10.1mm
Package Type:
TO-252
Minimum Operating Temperature:
-55°C
Maximum Drain Source Resistance Rds:
1.8Ω
Standards/Approvals:
RoHS
Maximum Continuous Drain Current Id:
3A
Channel Type:
Type N
Maximum Operating Temperature:
150°C
Pin Count:
3
Mount Type:
Surface
