FET Feature:
-
HTSUS:
8541.29.0095
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 150°C (TJ)

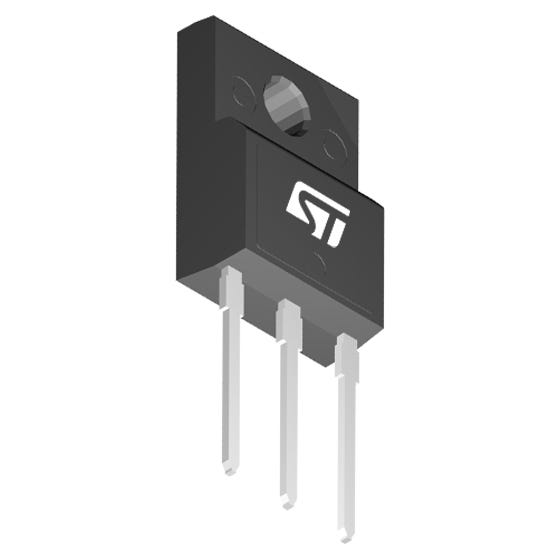

Package / Case:
TO-220-3 Full Pack
Rds On (Max) @ Id, Vgs:
1.25Ohm @ 3A, 10V
title:
STF6N95K5
Vgs(th) (Max) @ Id:
5V @ 100µA
REACH Status:
REACH Unaffected
edacadModel:
STF6N95K5 Models
FET Type:
N-Channel
Drive Voltage (Max Rds On, Min Rds On):
10V
edacadModelUrl:
/en/models/3043811
Drain to Source Voltage (Vdss):
950 V
Vgs (Max):
±30V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Power Dissipation (Max):
25W (Tc)
standardLeadTime:
14 Weeks
Input Capacitance (Ciss) (Max) @ Vds:
450 pF @ 100 V
Mounting Type:
Through Hole
Series:
SuperMESH5™
Gate Charge (Qg) (Max) @ Vgs:
13 nC @ 10 V
Supplier Device Package:
TO-220FP
Packaging:
Tube
Current - Continuous Drain (Id) @ 25°C:
9A (Tc)
Technology:
MOSFET (Metal Oxide)
Base Product Number:
STF6
ECCN:
EAR99
Automotive Standard:
No
Maximum Power Dissipation Pd:
25W
Maximum Drain Source Voltage Vds:
950V
Channel Mode:
Enhancement
Maximum Gate Source Voltage Vgs:
±30 V
Series:
MDmesh K5
Forward Voltage Vf:
1.6V
Channel Type:
Type N
Typical Gate Charge Qg @ Vgs:
13nC
Package Type:
TO-220FP
Minimum Operating Temperature:
-55°C
Maximum Drain Source Resistance Rds:
1.25Ω
Standards/Approvals:
No
Maximum Continuous Drain Current Id:
9A
Product Type:
MOSFET
Maximum Operating Temperature:
150°C
Pin Count:
3
Mount Type:
Through Hole
