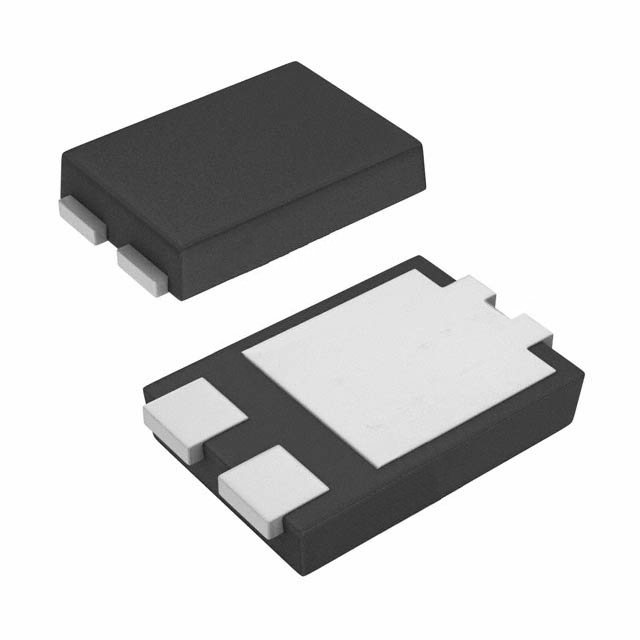

SMC Diode Solutions ST5100S

ST5100S SMC Diode Solutions
SMC Diode Solutions

Product Information

HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Package / Case:
TO-277, 3-PowerDFN
Operating Temperature - Junction:
-55°C ~ 150°C
REACH Status:
REACH Affected
Current - Average Rectified (Io):
5A
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
Voltage - Forward (Vf) (Max) @ If:
750 mV @ 5 A
Voltage - DC Reverse (Vr) (Max):
100 V
Capacitance @ Vr, F:
245pF @ 5V, 1MHz
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
20 Weeks
Current - Reverse Leakage @ Vr:
120 µA @ 100 V
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
TO-277B
Packaging:
Tape & Reel (TR)
Technology:
Schottky
Base Product Number:
ST5100
ECCN:
EAR99
Checking for live stock

This is manufactured by SMC Diode Solutions. The manufacturer part number is ST5100S. It is assigned with possible HTSUS value of 8541.10.0080. The product is rohs3 compliant. Moreover, the product comes in to-277, 3-powerdfn. The product operate at temperatures ranging from -55°c ~ 150°c. In addition, it is reach affected. It features a 5a of average rectified current. It has a robust speed of fast recovery =< 500ns, > 200ma (io). The product has a maximum forward voltage of 750 mv @ 5 a. While it has maximum reverse voltage of 100 v. Moreover, the product has a 245pf @ 5v, 1mhz capacitance. Its typical moisture sensitivity level is 1 (unlimited). It has a long 20 weeks standard lead time. 120 µa @ 100 v is the reverse leakage value of a bespoke product. The product is available in surface mount configuration. to-277b is the supplier device package value. In addition, tape & reel (tr) is the available packaging type of the product. This product use schottky technology. Moreover, it corresponds to st5100, a base product number of the product. The product is designated with the ear99 code number.
