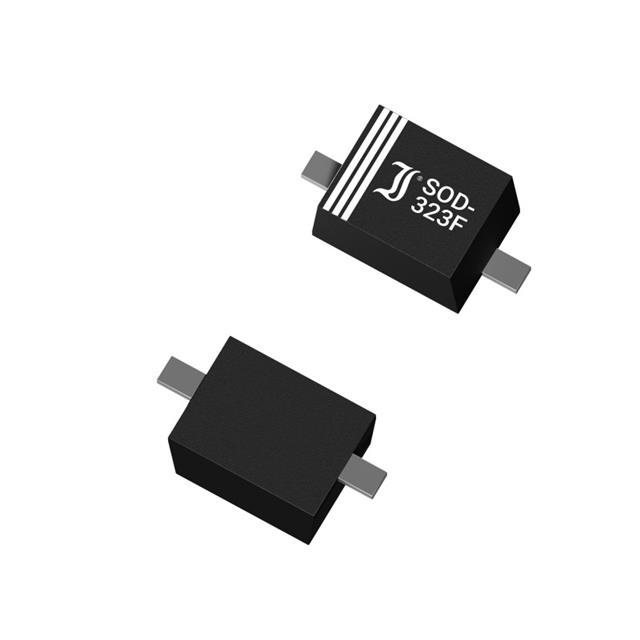

Diotec Semiconductor BAT54WS
Product Information
Reverse Recovery Time (trr):
6 ns
HTSUS:
8541.10.0070
RoHS Status:
Not applicable
Package / Case:
SC-90, SOD-323F
edacadModel:
BAT54WS Models
Operating Temperature - Junction:
-55°C ~ 150°C
REACH Status:
Vendor Undefined
edacadModelUrl:
/en/models/13163757
Current - Average Rectified (Io):
200mA
Speed:
Small Signal =< 200mA (Io), Any Speed
Voltage - Forward (Vf) (Max) @ If:
800 mV @ 100 mA
Package:
Tape & Reel (TR)
Voltage - DC Reverse (Vr) (Max):
30 V
Capacitance @ Vr, F:
10pF @ 1V, 1MHz
Moisture Sensitivity Level (MSL):
Not Applicable
Current - Reverse Leakage @ Vr:
2 µA @ 25 V
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
SOD-323F
Technology:
Schottky
Base Product Number:
BAT54
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search BAT54WS on website for other similar products.
We accept all major payment methods for all products including ET23167408. Please check your shopping cart at the time of order.
You can order Diotec Semiconductor brand products with BAT54WS directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Single Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Diotec Semiconductor BAT54WS. You can also check on our website or by contacting our customer support team for further order details on Diotec Semiconductor BAT54WS.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET23167408 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Diotec Semiconductor" products on our website by using Enrgtech's Unique Manufacturing Part Number ET23167408.
Yes. We ship BAT54WS Internationally to many countries around the world.
This is manufactured by Diotec Semiconductor. The manufacturer part number is BAT54WS. It has a trr (reverse recovery time) of 6 ns. It is assigned with possible HTSUS value of 8541.10.0070. The product is not applicable. Moreover, the product comes in sc-90, sod-323f. The product operate at temperatures ranging from -55°c ~ 150°c. In addition, it is vendor undefined. It features a 200ma of average rectified current. It has a robust speed of small signal =< 200ma (io), any speed. The product has a maximum forward voltage of 800 mv @ 100 ma. It is shipped in tape & reel (tr) package . While it has maximum reverse voltage of 30 v. Moreover, the product has a 10pf @ 1v, 1mhz capacitance. Its typical moisture sensitivity level is not applicable. 2 µa @ 25 v is the reverse leakage value of a bespoke product. The product is available in surface mount configuration. sod-323f is the supplier device package value. This product use schottky technology. Moreover, it corresponds to bat54, a base product number of the product. The product is designated with the ear99 code number.
