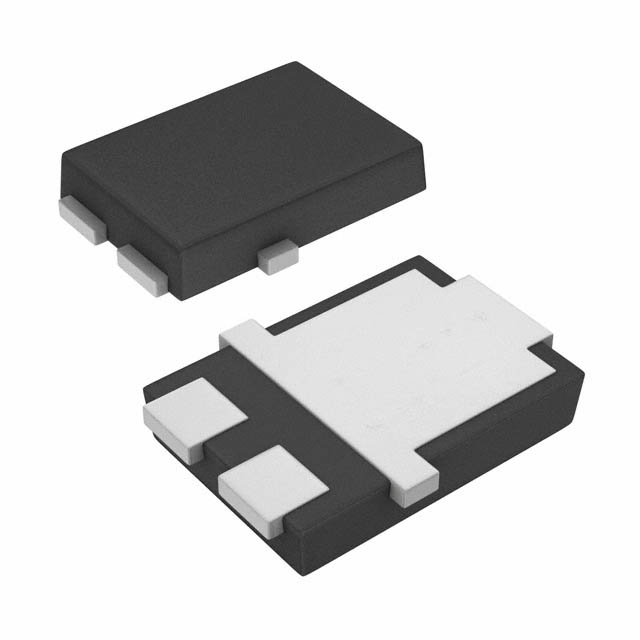

STMicroelectronics STPS560SFY

STPS560SFY STMicroelectronics
STPS560SFY
STMicroelectronics

Product Information

HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Package / Case:
TO-277, 3-PowerDFN
edacadModel:
STPS560SFY Models
Operating Temperature - Junction:
-40°C ~ 175°C
REACH Status:
REACH Unaffected
edacadModelUrl:
/en/models/10209867
Current - Average Rectified (Io):
5A
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
Voltage - Forward (Vf) (Max) @ If:
560 mV @ 5 A
Package:
Tape & Reel (TR)
Voltage - DC Reverse (Vr) (Max):
60 V
Capacitance @ Vr, F:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Qualification:
AEC-Q101
standardLeadTime:
15 Weeks
Current - Reverse Leakage @ Vr:
50 µA @ 60 V
Mounting Type:
Surface Mount
Grade:
Automotive
Series:
ECOPACK®2
Supplier Device Package:
TO-277A (SMPC)
Technology:
Schottky
Base Product Number:
STPS560
ECCN:
EAR99
Checking for live stock

This is manufactured by STMicroelectronics. The manufacturer part number is STPS560SFY. It is assigned with possible HTSUS value of 8541.10.0080. The product is rohs3 compliant. Moreover, the product comes in to-277, 3-powerdfn. The product operate at temperatures ranging from -40°c ~ 175°c. In addition, it is reach unaffected. It features a 5a of average rectified current. It has a robust speed of fast recovery =< 500ns, > 200ma (io). The product has a maximum forward voltage of 560 mv @ 5 a. It is shipped in tape & reel (tr) package . While it has maximum reverse voltage of 60 v. Its typical moisture sensitivity level is 1 (unlimited). It has a long 15 weeks standard lead time. 50 µa @ 60 v is the reverse leakage value of a bespoke product. The product is available in surface mount configuration. The product is automotive, a grade of class. The product ecopack®2, is a highly preferred choice for users. to-277a (smpc) is the supplier device package value. This product use schottky technology. Moreover, it corresponds to stps560, a base product number of the product. The product is designated with the ear99 code number.
