Mounting Type:
Capsule
Rectifier Type:
High Voltage
Peak Reverse Recovery Time:
17µs
Peak Non-Repetitive Forward Surge Current:
12.9kA
Maximum Forward Voltage Drop:
2.12V
Maximum Continuous Forward Current:
1.2kA
Diode Technology:
Silicon Junction
Number of Elements per Chip:
1
Diode Type:
Silicon Junction
Diode Configuration:
Single
Pin Count:
2
Peak Reverse Repetitive Voltage:
2500V
HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Package / Case:
DO-200AB, A-PUK
Reverse Recovery Time (trr):
17 µs
Operating Temperature - Junction:
-40°C ~ 175°C
REACH Status:
REACH Unaffected
Current - Average Rectified (Io):
1263A
Speed:
Standard Recovery >500ns, > 200mA (Io)
Voltage - Forward (Vf) (Max) @ If:
2.12 V @ 3770 A
Package:
Box
Voltage - DC Reverse (Vr) (Max):
2500 V
Capacitance @ Vr, F:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
8 Weeks
Current - Reverse Leakage @ Vr:
30 mA @ 2500 V
Mounting Type:
Clamp On
Series:
-
Supplier Device Package:
W2
Technology:
Standard
Base Product Number:
W1263
ECCN:
EAR99

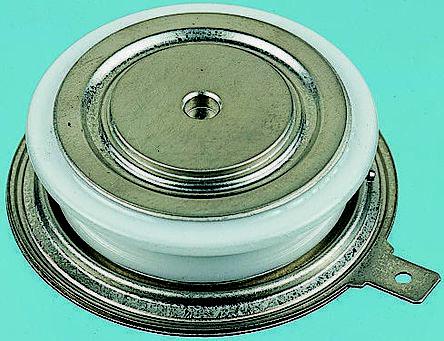

This is Capsule High Voltage Diode 2500V 1.2kA 2-Pin manufactured by IXYS. The manufacturer part number is W1263YC250. The product is available in capsule configuration. This high voltage product is highly suited for various professionals in various settings. Moreover, it has a peak reverse recovery time about 17µs . Moreover, a bespoke product has 12.9ka peak non-repetitive forward surge current. It features 2.12v of maximum forward voltage drop. Furthermore, its maximum continuous forward current constitutes 1.2ka. The product utilizes silicon junction diode technology. It consists of 1 elements per chip. It is designed with a silicon junction diode. The diode features a single configuration. It contains 2 pins. While having the peak reverse repetitive 2500v. It is assigned with possible HTSUS value of 8541.10.0080. The product is rohs3 compliant. Moreover, the product comes in do-200ab, a-puk. It has a trr (reverse recovery time) of 17 µs. The product operate at temperatures ranging from -40°c ~ 175°c. In addition, it is reach unaffected. It features a 1263a of average rectified current. It has a robust speed of standard recovery >500ns, > 200ma (io). The product has a maximum forward voltage of 2.12 v @ 3770 a. It is shipped in box package . While it has maximum reverse voltage of 2500 v. Its typical moisture sensitivity level is 1 (unlimited). It has a long 8 weeks standard lead time. 30 ma @ 2500 v is the reverse leakage value of a bespoke product. The product is available in clamp on configuration. w2 is the supplier device package value. This product use standard technology. Moreover, it corresponds to w1263, a base product number of the product. The product is designated with the ear99 code number.
