Automotive Standard:
No
Peak Reverse Current Ir:
3mA
Maximum Continuous Forward Current If:
45A
Rectifier Type:
Recovery
Maximum Operating Temperature:
175°C
Peak Reverse Repetitive Voltage Vrrm:
1200V
Peak Non-Repetitive Forward Surge Current Ifsm:
518A
Height:
21.46mm
Width:
5.3 mm
Length:
16.26mm

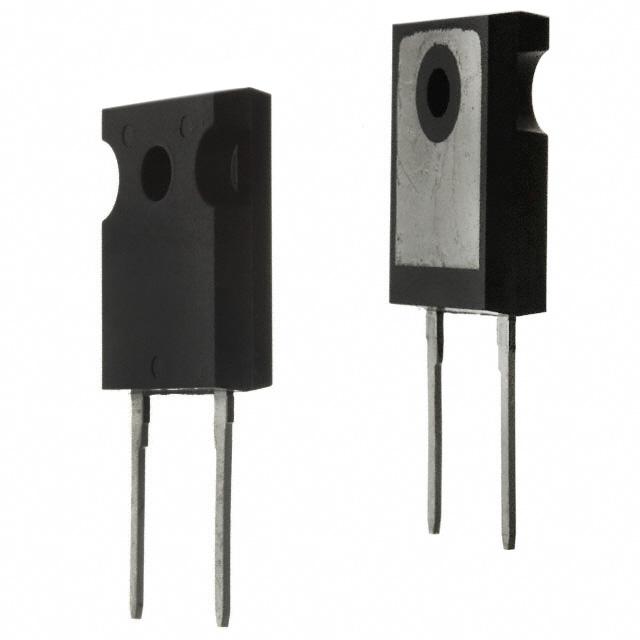

Package Type:
TO-247
Minimum Operating Temperature:
-40°C
Maximum Forward Voltage Vf:
1.37V
Standards/Approvals:
No
Product Type:
Diode
Diode Configuration:
Single
Pin Count:
2
Mount Type:
Through Hole
HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Package / Case:
TO-247-2
Operating Temperature - Junction:
-40°C ~ 175°C
REACH Status:
REACH Unaffected
Current - Average Rectified (Io):
45A
Speed:
Standard Recovery >500ns, > 200mA (Io)
Voltage - Forward (Vf) (Max) @ If:
1.28 V @ 45 A
Package:
Tube
Voltage - DC Reverse (Vr) (Max):
1200 V
Capacitance @ Vr, F:
18pF @ 400V, 1MHz
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
19 Weeks
Current - Reverse Leakage @ Vr:
20 µA @ 1200 V
Mounting Type:
Through Hole
Series:
-
Supplier Device Package:
TO-247AD
Technology:
Standard
Base Product Number:
DSI45
ECCN:
EAR99
