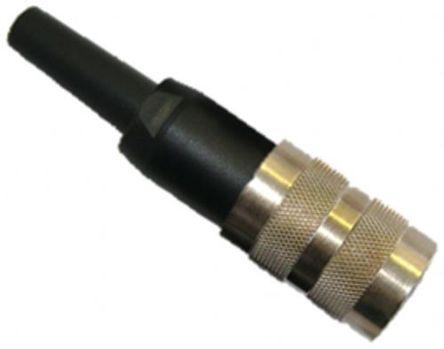

Gefran 5-Pin Female Connector

Gefran PY1 series linear position transducers Main characteristics: 50 mm stroke Mechanical linkage using joint with take up of play, M4 thread Independent linearity up to ±0.05% Infinite resolution Absence of electrical signal variation in output, outside the theoretical electrical stroke Maximum displacement speed 10m/s Operating temperature: -30 → 100°C 5-pole electrical connectors Life duration: >100 ´ 10 6 operations (within C.E.U.) Double support of the control rod Degree of protection IP40 Useful electrical stroke (C.E.U.) 50 Resolution Infinite Resistance tolerance ±20% Recommended cursor current Maximum cursor current ≤10mA Coeff. Termico della resistenza -200 ±200 ppm/°C Coeff. Termico effettivo della tensione d'uscita Electrical Insulation >100 Mohm at 500 V Dielectric strength >500 V eff. at 50 Hz Operating temperature -30°C → 100°C Storage temperature -50°C → 120°C Displacement speed ≤10 m/s Displacement force ≤0.30N Material transducer case Anodized aluminium Nylon 66 GF 40 Materiale costruttivo albero di trascinamento Stainless steel AISI 431 Fixture Brackets with adjustable distance between centres Electrical/mechanical features Model 50 Useful electrical stroke (C.E.U.) +1/-0 mm 50 Theoretical electrical stroke (C.E.T.) ±1 mm C.E.U. +1 Resistance (C.E.T.) kΩ 5 Independent linearity (within C.E.U.) ±% 0.1 Dissipation at 40°C (0 W at 120°C) W 1.2 Maximum applicable voltage V 60 Mechanical stroke (C.M.) mm C.E.U. +5 Case length (A) mm C.E.U. +38 Total length (B) mm 157

For more information please check the datasheets.
