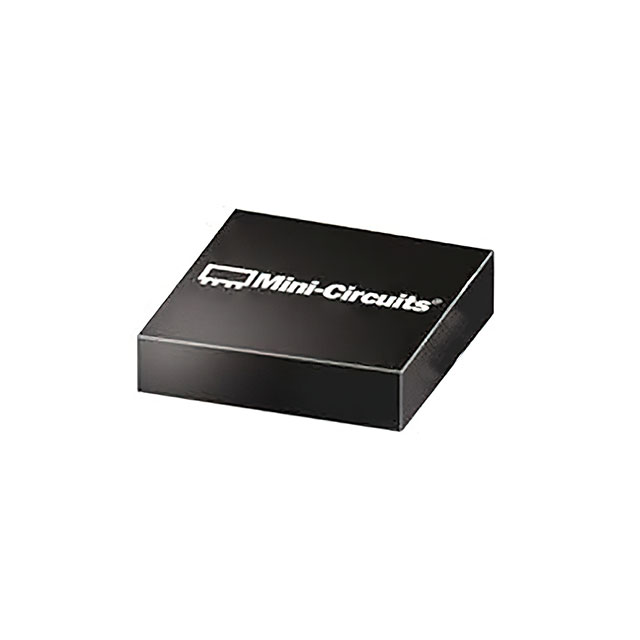

Mini-Circuits JSW4-23DR-75+
Product Information
Frequency Range:
5MHz ~ 2GHz
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 85°C
Package / Case:
14-UFQFN Exposed Pad
Insertion Loss:
1.1dB
RF Type:
CATV, SatCom
edacadModel:
JSW4-23DR-75+ Models
P1dB:
-
edacadModelUrl:
/en/models/13927519
Impedance:
75Ohm
Topology:
Reflective
IIP3:
59dBm
Package:
Tape & Reel (TR)
Isolation:
25dB
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SP4T
standardLeadTime:
13 Weeks
Features:
-
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
14-QFN (2x2)
Test Frequency:
2GHz
Voltage - Supply:
2.5V ~ 4.8V
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search JSW4-23DR-75+ on website for other similar products.
We accept all major payment methods for all products including ET20938832. Please check your shopping cart at the time of order.
You can order Mini-Circuits brand products with JSW4-23DR-75+ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in RF Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Mini-Circuits JSW4-23DR-75+. You can also check on our website or by contacting our customer support team for further order details on Mini-Circuits JSW4-23DR-75+.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET20938832 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Mini-Circuits" products on our website by using Enrgtech's Unique Manufacturing Part Number ET20938832.
Yes. We ship JSW4-23DR-75+ Internationally to many countries around the world.
This is manufactured by Mini-Circuits. The manufacturer part number is JSW4-23DR-75+. The frequency range includes 5mhz ~ 2ghz. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The product has -40°c ~ 85°c operating temperature range. Moreover, the product comes in 14-ufqfn exposed pad. Allows 1.1db of insertion loss. This is a sort of catv, satcom RF. It has an impedance value of 75ohm. Topology includes reflective. The IIP3 value of 59dbm. It is shipped in tape & reel (tr) package . Features a 25db isolation. Its typical moisture sensitivity level is 1 (unlimited). It has an integral sp4t circuit. It has a long 13 weeks standard lead time. The product is available in surface mount configuration. 14-qfn (2x2) is the supplier device package value. It features a test frequency of 2ghz. It has optimum voltage supply of 2.5v ~ 4.8v. The product is designated with the ear99 code number.
