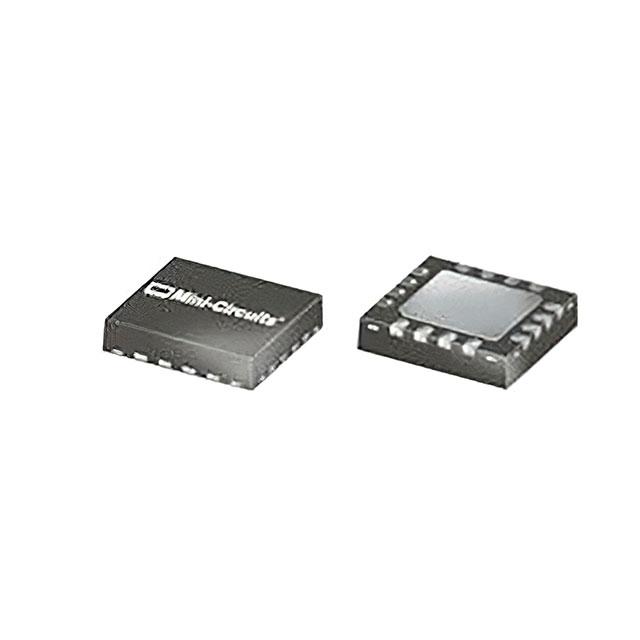

Mini-Circuits VSWA2-63DR+
Product Information
Frequency Range:
500MHz ~ 6GHz
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 85°C
Package / Case:
16-TQFN Exposed Pad
Insertion Loss:
1dB
REACH Status:
REACH Unaffected
RF Type:
Cellular, ISM, WiMAX
edacadModel:
VSWA2-63DR+ Models
P1dB:
30dBm
edacadModelUrl:
/en/models/13927701
Impedance:
50Ohm
Topology:
Absorptive
IIP3:
50dBm
Package:
Tape & Reel (TR)
Isolation:
46dB
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPDT
standardLeadTime:
13 Weeks
Features:
-
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
16-QFN (4x4)
Test Frequency:
6GHz
Voltage - Supply:
3V ~ 5V
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search VSWA2-63DR+ on website for other similar products.
We accept all major payment methods for all products including ET20929904. Please check your shopping cart at the time of order.
You can order Mini-Circuits brand products with VSWA2-63DR+ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in RF Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Mini-Circuits VSWA2-63DR+. You can also check on our website or by contacting our customer support team for further order details on Mini-Circuits VSWA2-63DR+.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET20929904 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Mini-Circuits" products on our website by using Enrgtech's Unique Manufacturing Part Number ET20929904.
Yes. We ship VSWA2-63DR+ Internationally to many countries around the world.
This is manufactured by Mini-Circuits. The manufacturer part number is VSWA2-63DR+. The frequency range includes 500mhz ~ 6ghz. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The product has -40°c ~ 85°c operating temperature range. Moreover, the product comes in 16-tqfn exposed pad. Allows 1db of insertion loss. In addition, it is reach unaffected. This is a sort of cellular, ism, wimax RF. The output power level of the product is 30dbm. It has an impedance value of 50ohm. Topology includes absorptive. The IIP3 value of 50dbm. It is shipped in tape & reel (tr) package . Features a 46db isolation. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spdt circuit. It has a long 13 weeks standard lead time. The product is available in surface mount configuration. 16-qfn (4x4) is the supplier device package value. It features a test frequency of 6ghz. It has optimum voltage supply of 3v ~ 5v. The product is designated with the ear99 code number.
