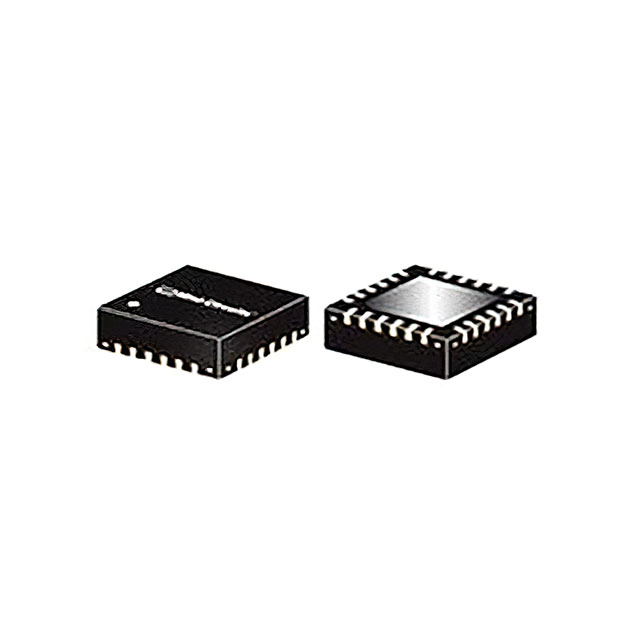

Mini-Circuits HSWA4-63DR+
Product Information
Frequency Range:
30MHz ~ 6GHz
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Package / Case:
24-VFQFN Exposed Pad
Insertion Loss:
1.9dB
REACH Status:
REACH Unaffected
RF Type:
General Purpose
edacadModel:
HSWA4-63DR+ Models
P1dB:
-
edacadModelUrl:
/en/models/13928004
Impedance:
50Ohm
Topology:
Absorptive
IIP3:
58dBm
Package:
Tape & Reel (TR)
Isolation:
32dB
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SP4T
standardLeadTime:
13 Weeks
Features:
-
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
24-QFN (4x4)
Test Frequency:
6GHz
Voltage - Supply:
2.3V ~ 5.5V
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search HSWA4-63DR+ on website for other similar products.
We accept all major payment methods for all products including ET20929353. Please check your shopping cart at the time of order.
You can order Mini-Circuits brand products with HSWA4-63DR+ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in RF Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Mini-Circuits HSWA4-63DR+. You can also check on our website or by contacting our customer support team for further order details on Mini-Circuits HSWA4-63DR+.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET20929353 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Mini-Circuits" products on our website by using Enrgtech's Unique Manufacturing Part Number ET20929353.
Yes. We ship HSWA4-63DR+ Internationally to many countries around the world.
This is manufactured by Mini-Circuits. The manufacturer part number is HSWA4-63DR+. The frequency range includes 30mhz ~ 6ghz. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. Moreover, the product comes in 24-vfqfn exposed pad. Allows 1.9db of insertion loss. In addition, it is reach unaffected. This is a sort of general purpose RF. It has an impedance value of 50ohm. Topology includes absorptive. The IIP3 value of 58dbm. It is shipped in tape & reel (tr) package . Features a 32db isolation. Its typical moisture sensitivity level is 1 (unlimited). It has an integral sp4t circuit. It has a long 13 weeks standard lead time. The product is available in surface mount configuration. 24-qfn (4x4) is the supplier device package value. It features a test frequency of 6ghz. It has optimum voltage supply of 2.3v ~ 5.5v. The product is designated with the ear99 code number.
