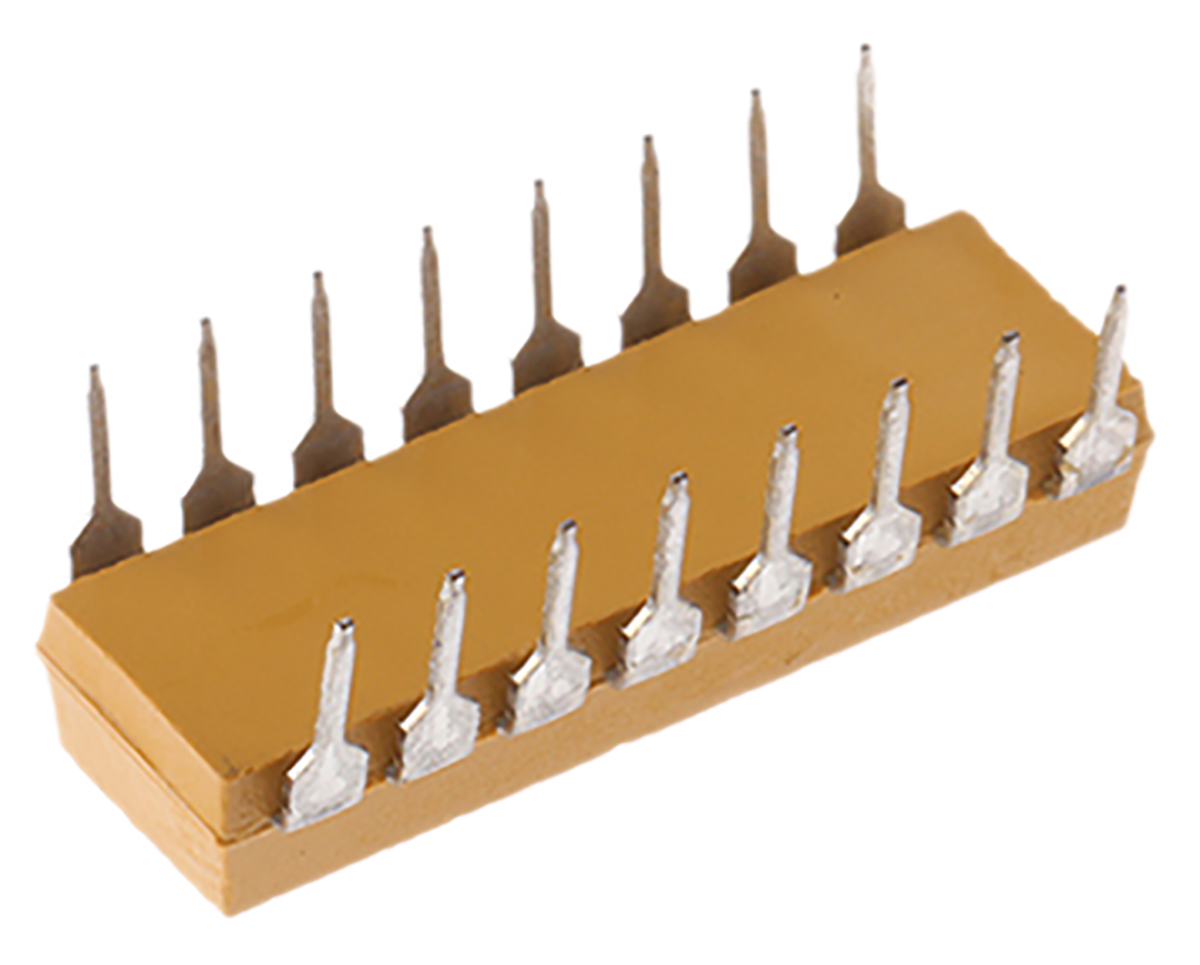

Bourns Isolated Resistor Array 2.2kΩ ±2% 8 Resistors, 2.25W Total, DIP package 4100R Through Hole

Enrgtech Part No: ET16753862
|
Manufacturer Part No:
4116R-1-222LF
|
Manufacturer: Bourns

4116R-1-222LF Bourns Isolated Resistor Array 2.2kΩ ±2% 8 Resistors, 2.25W Total, DIP package 4100R Through Hole

Product Information

Power Rating per Resistor:

0.25W

Circuit Designator:

ISOL

Maximum Operating Temperature:

+125°C

Dimensions:

7.87 x 4.57 x 21.97mm

Series:

4100R

Resistor Type:

Network

Termination Style:

Through Hole

Length:

21.97mm

Temperature Coefficient:

±100ppm/°C

Height:

4.57mm

Depth:

7.87mm

Number of Resistors:

Checking for live stock

The Bourns 4116R-1-222LF is a robust, isolated resistor array that integrates eight individual 2.2 kω resistors into a single, space-saving DIP through-hole package. Part of the 4100R Series, this network features a tight ±2% tolerance and an excellent ±100 ppm/°C temperature coefficient, ensuring precision and stability across a wide operating temperature range. With each resistor rated at 0.25W and a total package power rating of 2.25W, it is highly reliable for filtering, limiting, and pull-up/pull-down applications in demanding electronic circuits.

Why Should You Buy the Bourns 4116R-1-222LF Resistor Array?

This resistor array is ideal for reducing component count and saving valuable PCB space in through-hole designs. With eight isolated 2.2kΩ resistors and a ±2% tolerance, it ensures high precision and uniform performance for pull-up/pull-down, signal conditioning, and current limiting tasks in stable electronic assemblies.

Feature Highlights & Application Areas of the Resistor Array

Component Density: Integrates eight isolated resistors in one DIP package to save circuit board space.
High Precision: Features a tight ±2% tolerance and stable ±100ppm/°C temperature coefficient.
Circuit Configuration: Isolated (ISOL) design ensures each resistor operates independently.
Current Limiting: Used to safely limit current flow to LEDs and other sensitive components.
Digital Systems: Excellent for pull-up and pull-down applications in TTL and CMOS logic circuits.
Signal Conditioning: Applied in filtering and impedance matching networks in various electronic assemblies.

4100R Series - Thick Film Molded DIPs Data Sheet(Technical Reference)
