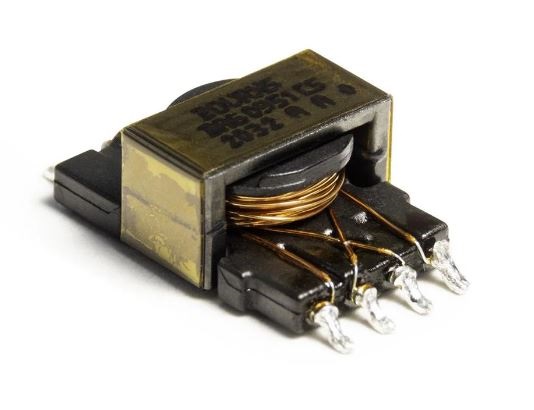

Bourns Surface Mount Flyback Transformer 1:0.77 Turns Ratio, 25μH Prim. Inductance

BA60951CS Bourns Surface Mount Flyback Transformer 1:0.77 Turns Ratio, 25μH Prim. Inductance
BA60951CS Bourns Surface Mount Flyback Transformer 1:0.77 Turns Ratio, 25μH Prim. Inductance
Bourns

Product Information

Primary DC Resistance:
0.55Ω
Isolation Voltage:
800V
Termination Type:
Tin
Secondary DC Resistance:
0.66Ω
Leakage Inductance:
0.6μH
Series:
BA60951CS
Maximum Operating Frequency:
120kHz
Current:
1.4A
Number of Pins:
8
Turns Ratio:
1:0.77
Primary Inductance:
25μH
Standards/Approvals:
AEC-Q200, RoHS
Product Type:
Flyback Transformer
Maximum Operating Temperature:
155°C
Minimum Operating Temperature:
-40°C
Mount Type:
Surface
RoHs Compliant
Checking for live stock

This is Surface Mount Flyback Transformer 1:0.77 Turns Ratio 25μH Prim. Inductance manufactured by Bourns. The manufacturer part number is BA60951CS. Additionally, it has 0.55ω primary DC resistance . It has 800v isolation voltage. The product is designed with a tin termination. It has about 0.66ω secondary DC resistance . It has about 0.6μh leakage inductance . The product ba60951cs, is a highly preferred choice for users. It carries 120khz of maximum operating frequency. Features a 1.4a current in A. It is comprised of 8 pins. It has 1:0.77 turns ratio . Additionally, it has 25μh primary inductance . flyback transformer is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 155°c. Whereas, the minimum operating temperature of the product is -40°c. It has a surface type mount .

pdf icon
Datasheet - BA60951CS(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. We ship BA60951CS Internationally to many countries around the world.
Yes. You can also search BA60951CS on website for other similar products.
We accept all major payment methods for all products including ET26027748. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET26027748 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Bourns" products on our website by using Enrgtech's Unique Manufacturing Part Number ET26027748.
You can order Bourns brand products with BA60951CS directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Pulse Transformers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Bourns Surface Mount Flyback Transformer 1:0.77 Turns Ratio, 25μH Prim. Inductance. You can also check on our website or by contacting our customer support team for further order details on Bourns Surface Mount Flyback Transformer 1:0.77 Turns Ratio, 25μH Prim. Inductance.
