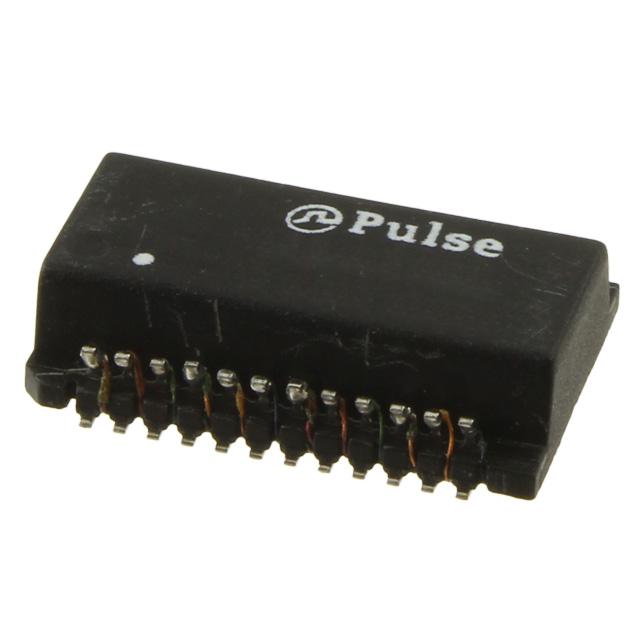

Pulse Electronics H5084FNLT
Product Information
The Pulse Electronics H5084FNLT is a high-quality pulse transformer for efficient signal transmission and isolation. Boasting a 1:1 turns ratio on both the transmit (TX) and receive (RX) sides, this transformer provides reliable and balanced signal transfer in various electronic applications.
HTSUS:
8504.31.2000
RoHS Status:
RoHS Compliant
Operating Temperature:
0°C ~ 70°C
edacadModel:
H5084FNLT Models
Height - Seated (Max):
0.163" (4.14mm)
REACH Status:
REACH Unaffected
Inductance:
350µH
edacadModelUrl:
/en/models/4291868
Package:
Tape & Reel (TR)
ET (Volt-Time):
-
Size / Dimension:
0.600" L x 0.385" W (15.24mm x 9.78mm)
Transformer Type:
LAN 10/100/1000 Base-T
Turns Ratio - Primary:Secondary:
1CT:1CT Transmitter, 1CT:1CT Receiver
standardLeadTime:
13 Weeks
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Surface Mount
Weight:
-
Series:
-
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search H5084FNLT on website for other similar products.
We accept all major payment methods for all products including ET23566321. Please check your shopping cart at the time of order.
You can order Pulse Electronics brand products with H5084FNLT directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Pulse Transformers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Pulse Electronics H5084FNLT. You can also check on our website or by contacting our customer support team for further order details on Pulse Electronics H5084FNLT.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET23566321 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Pulse Electronics" products on our website by using Enrgtech's Unique Manufacturing Part Number ET23566321.
Yes. We ship H5084FNLT Internationally to many countries around the world.
The Pulse Electronics H5084FNLT is a surface-mount pulse transformer designed for LAN (Local Area Network) applications, specifically for 10/100/1000 Base-T Ethernet connections. It provides isolation and impedance matching between the transmit (TX) and receive (RX) signals in Ethernet systems. It offers essential isolation and impedance matching, ensuring stable data transmission and signal integrity in Ethernet systems.
The H5084FNLT is a compact transformer designed for surface mount technology (SMT). Its small footprint allows easy integration onto circuit boards, making it suitable for space-constrained environments. The surface mount design enables efficient production processes and ensures a stable and reliable connection between LAN components.
This pulse transformer features an inductance of 350µH. Inductance is a crucial parameter that determines the ability of the transformer to transmit signals at different frequencies. With a well-matched inductance value, the H5084FNLT ensures optimal performance for LAN applications, supporting data rates of 10 Mbps, 100 Mbps, and 1000 Mbps (1 Gbps).
The H5084FNLT provides galvanic isolation between the transmitter and receiver, protecting the delicate electronics on both sides from electrical noise and potential ground loops. The transformer's high-quality construction and shielding techniques minimise crosstalk and electromagnetic interference, ensuring excellent signal integrity and reducing the chances of data corruption during transmission.
Use Cases of Pulse Electronics H5084FNLT:
The Pulse Electronics H5084FNLT is specifically designed for use in LAN applications, including:
