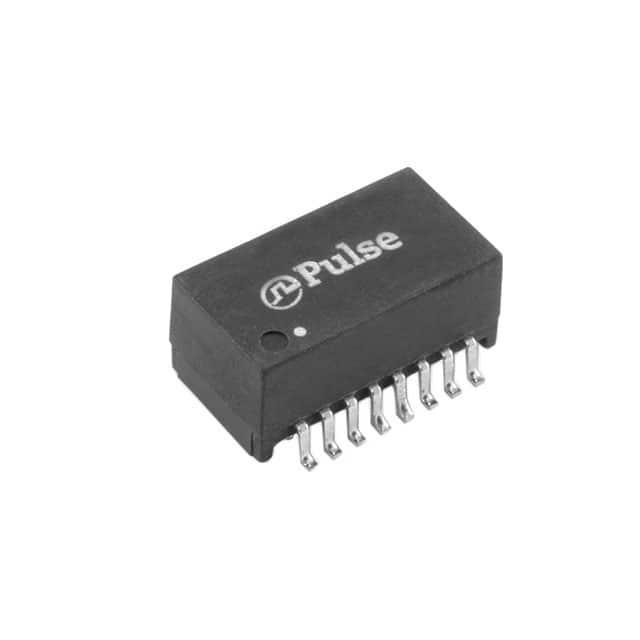

Pulse Electronics Network E2467NL

E2467NL Pulse Electronics Network
Pulse Electronics Network

Product Information

HTSUS:
8504.31.2000
RoHS Status:
RoHS Compliant
Operating Temperature:
-
Height - Seated (Max):
0.241" (6.12mm)
Inductance:
20µH, 100µH
Package:
Tube
ET (Volt-Time):
-
Size / Dimension:
0.500" L x 0.358" W (12.70mm x 9.09mm)
Transformer Type:
Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary:
1CT:2CT Transmitter, 1CT:1CT Receiver
standardLeadTime:
16 Weeks
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Surface Mount
Weight:
0.03 oz (0.85 g)
Series:
-
ECCN:
EAR99
Checking for live stock

This is manufactured by Pulse Electronics Network. The manufacturer part number is E2467NL. It is assigned with possible HTSUS value of 8504.31.2000. The product is rohs compliant. It has the maximum seated height of 0.241" (6.12mm). The product has a 20µh, 100µh inductance value. It is shipped in tube package . The product's diameters include 0.500" l x 0.358" w (12.70mm x 9.09mm). It is a isolation and data interface (encapsulated) transformer. The typical primary and secondary turn ratio is 1ct:2ct transmitter, 1ct:1ct receiver. It has a long 16 weeks standard lead time. Its typical moisture sensitivity level is 1 (unlimited). The product is available in surface mount configuration. The typical product's weight is 0.03 oz (0.85 g). The product is designated with the ear99 code number.

pdf icon
Halo Injunction Res 1/Sep/2015(PCN Other)
pdf icon
E2467NL Drawing(Datasheets)
pdf icon
Ink to Laser Marking 03/Jul/2018(PCN Design/Specification)
pdf icon
Thermoplastic Header Design 28/Jun/2013(PCN Design/Specification)
