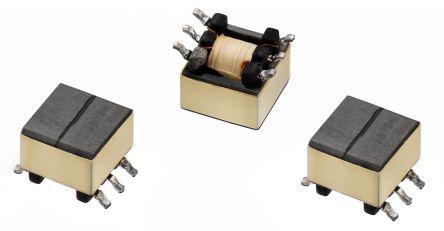

1 Output Signal & Power Gate Drive Transformer, 80V dc, 460μH

Enrgtech Part No: ET16771283
|
Manufacturer Part No:
760301108
|
Manufacturer: Wurth Elektronik

760301108 1 Output Signal & Power Gate Drive Transformer, 80V dc, 460μH

Product Information

Primary DC Resistance:

730mΩ

Isolation Voltage:

1500V

Termination Type:

Solder

Secondary DC Resistance:

150mΩ

Leakage Inductance:

2.3μH

Length:

7mm

Maximum Operating Frequency:

100kHz

Width:

7 mm

Depth:

6mm

Standards/Approvals:

IPC/JEDEC J-STD-020D

Turns Ratio:

2.5:1

Primary Inductance:

460μH

Checking for live stock

This is 1 Output Signal & Power Gate Drive Transformer 80V dc 460μH manufactured by Wurth Elektronik. The manufacturer part number is 760301108. Additionally, it has 730mω primary DC resistance . It has 1500v isolation voltage. The product is designed with a solder termination. It has about 150mω secondary DC resistance . It has about 2.3μh leakage inductance . Its accurate length is 7mm. It carries 100khz of maximum operating frequency. Furthermore, the product is 7 mm wide. The product comes in 6mm depth. It has 2.5:1 turns ratio . Additionally, it has 460μh primary inductance . It has a minimum 10khz operating frequency . pulse transformer is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 125°c. Whereas, the minimum operating temperature of the product is -40°c. It has a surface type mount .
