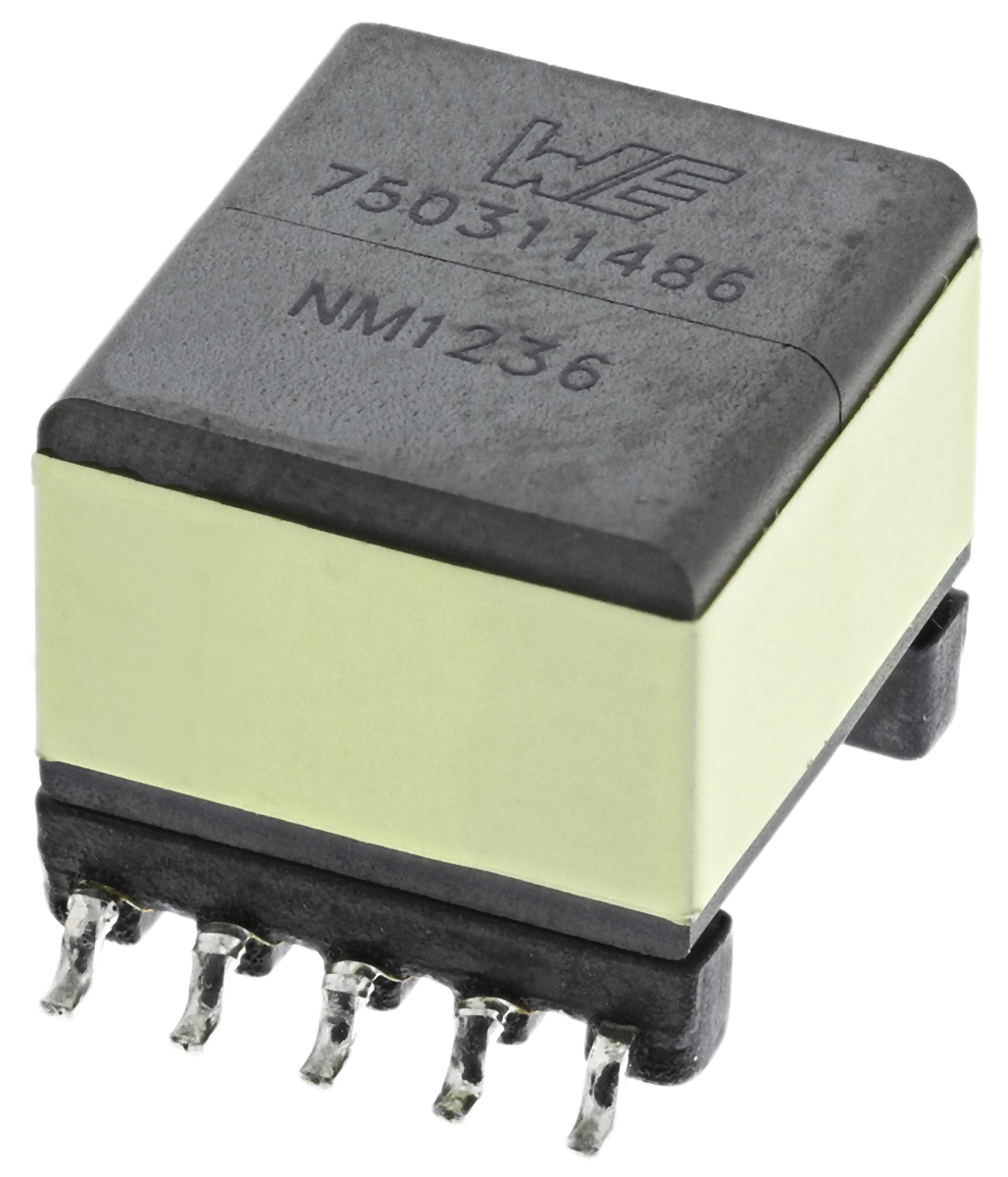

1:10 Surface Mount Flyback Transformer, 100μH, 0.22Ω

Enrgtech Part No: ET14068493
|
Manufacturer Part No:
750311486
|
Manufacturer: Wurth Elektronik

750311486 1:10 Surface Mount Flyback Transformer, 100μH, 0.22Ω

Product Information

Primary DC Resistance:

0.22Ω

Isolation Voltage:

2.5kV

Dimensions:

17.75 x 13.46 x 12.7mm

Mounting Type:

Surface Mount

Secondary Voltage Rating:

4 V, 200 v

Leakage Inductance:

4.5µH

Minimum Temperature:

-40°C

Length:

17.75mm

Width:

13.46mm

Depth:

12.7mm

Maximum Temperature:

+125°C

Turns Ratio:

1:10

Checking for live stock

This is 1:10 Surface Mount Flyback Transformer 100μH 0.22Ω manufactured by Wurth Elektronik. The manufacturer part number is 750311486. Additionally, it has 0.22ω primary DC resistance . It has 2.5kv isolation voltage. The given dimensions of the product include 17.75 x 13.46 x 12.7mm. The product is available in surface mount configuration. In addition, it has a secondary 4 v, 200 v voltage rating . It has about 4.5µh leakage inductance . While its minimum temperature is -40°c. Its accurate length is 17.75mm. Furthermore, the product is 13.46mm wide. The product comes in 12.7mm depth. The product has +125°c maximum temperature. It has 1:10 turns ratio . It has about 12 → 50v primary voltage rating . Additionally, it has 100µh primary inductance . Feature 0.8w of power rating. It has about 31ω secondary DC resistance .

Flyback Transformator Ui12V Uo200V 0.8W(Technical Reference)
