1 Output Filtering SMPS Transformer, 2mH

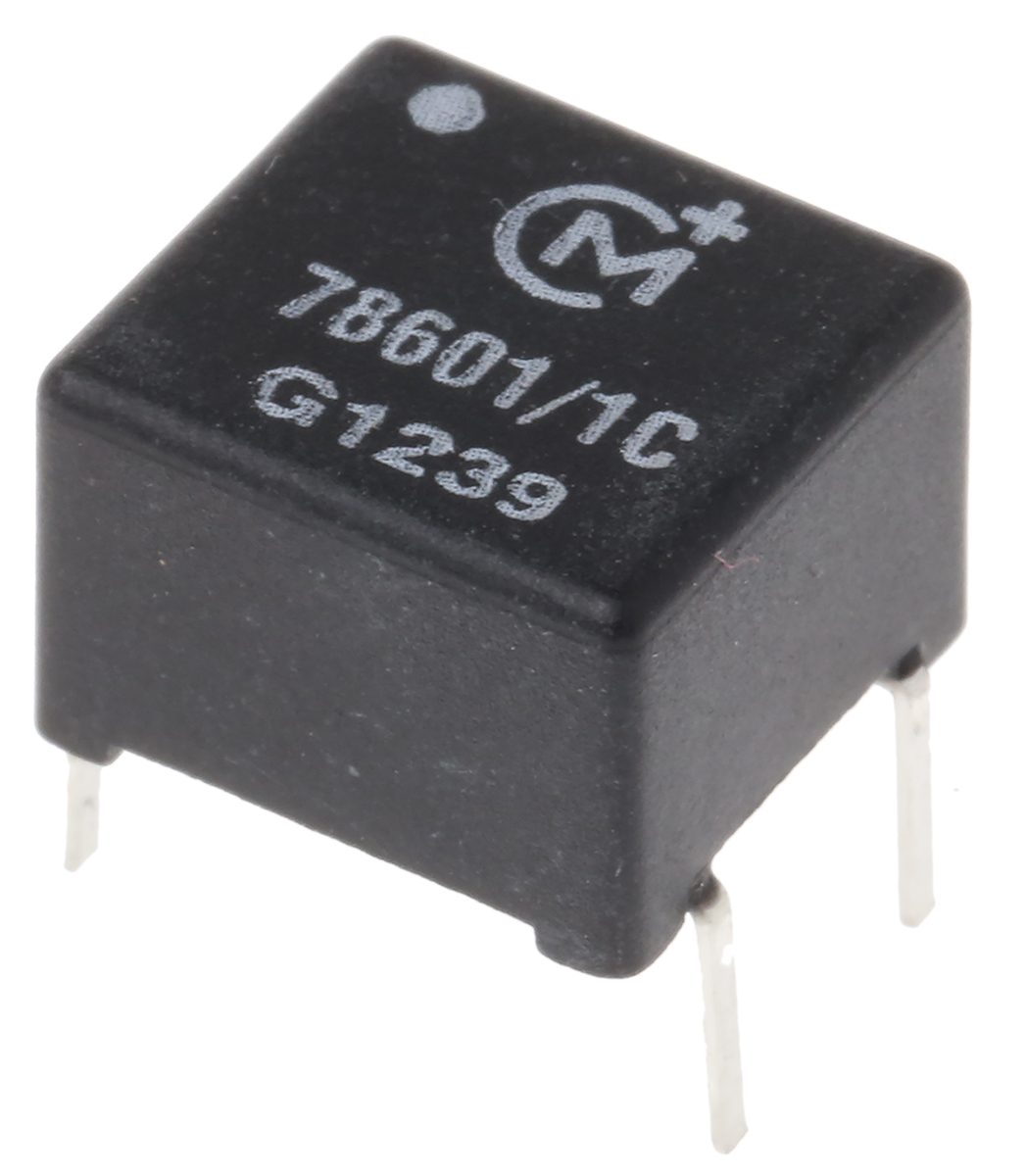

78601-1C 1 Output Filtering SMPS Transformer, 2mH
78601/1C
78601-1C 1 Output Filtering SMPS Transformer, 2mH
Murata Power Solutions

Product Information

Primary DC Resistance:
0.6Ω
Isolation Voltage:
1kV
Termination Type:
Pin
Weight:
1.1g
Leakage Inductance:
0.47μH
Series:
786
Length:
9.52mm
Width:
9 mm
Depth:
6.35mm
Number of Pins:
6
Turns Ratio:
3:71
Primary Inductance:
2000μH
Standards/Approvals:
RoHS
Product Type:
Pulse Transformer
Maximum Operating Temperature:
70°C
Minimum Operating Temperature:
0°C
Mount Type:
Through Hole
RoHs Compliant
Checking for live stock

This is 1 Output Filtering SMPS Transformer 2mH manufactured by Murata Power Solutions. The manufacturer part number is 78601/1C. Additionally, it has 0.6ω primary DC resistance . It has 1kv isolation voltage. The product is designed with a pin termination. The typical product's weight is 1.1g. It has about 0.47μh leakage inductance . The product 786, is a highly preferred choice for users. Its accurate length is 9.52mm. Furthermore, the product is 9 mm wide. The product comes in 6.35mm depth. It is comprised of 6 pins. It has 3:71 turns ratio . Additionally, it has 2000μh primary inductance . pulse transformer is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 70°c. Whereas, the minimum operating temperature of the product is 0°c. It has a through hole type mount .
