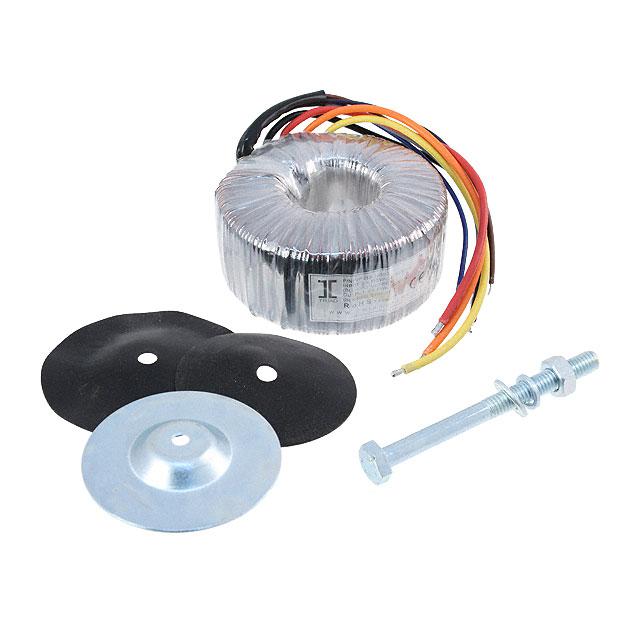

Triad Magnetics VPT18-13800

VPT18-13800 Triad Magnetics
Triad Magnetics

Product Information

Secondary Winding(s):
Dual
HTSUS:
8504.31.4065
RoHS Status:
ROHS3 Compliant
Termination Style:
Wire Leads
Current - Output (Max):
Parallel 27.6A, Series 13.8A
Voltage - Primary:
115V, 230V
Height - Seated (Max):
58.0mm
Type:
Toroidal
Primary Winding(s):
Dual
REACH Status:
REACH Unaffected
edacadModel:
VPT18-13800 Models
edacadModelUrl:
/en/models/2090089
Center Tap:
No
Manufacturer:
Triad Magnetics
Voltage - Secondary (Full Load):
Parallel 9V, Series 18V
Size / Dimension:
112.00mm Dia x 54.00mm W
standardLeadTime:
19 Weeks
Voltage - Isolation:
4000Vrms
Moisture Sensitivity Level (MSL):
Not Applicable
Mounting Type:
Chassis Mount
Weight:
4.9 lbs (2.2 kg)
Series:
Chassis Mount: World Series™
Packaging:
Box
Power - Max:
250VA
ECCN:
EAR99
Checking for live stock

This is manufactured by Triad Magnetics. The manufacturer part number is VPT18-13800. As well as [Secondary Wing(s)]. It is assigned with possible HTSUS value of 8504.31.4065. The product is rohs3 compliant. Moreover, it has wire leads terminal style. The maximum product's output current is parallel 27.6a, series 13.8a. Features primary voltage 115v, 230v. It has the maximum seated height of 58.0mm. It comes in toroidal configuration. Features dual. In addition, it is reach unaffected. Center Tap - no. The triad magnetics's product offers user-desired applications. Full load voltage - secondary includes parallel 9v, series 18v. The product's diameters include 112.00mm dia x 54.00mm w. It has a long 19 weeks standard lead time. 4000vrms of isolation voltage. Its typical moisture sensitivity level is not applicable. The product is available in chassis mount configuration. The typical product's weight is 4.9 lbs (2.2 kg). The product chassis mount: world series™, is a highly preferred choice for users. In addition, box is the available packaging type of the product. The maximum power of the product is 250va. The product is designated with the ear99 code number.

pdf icon
VPT18-13800(Datasheets)
pdf icon
Standard Part Warranty Terms(Other Related Documents)
