Actual Diameter:
0.098" (2.50mm ID), 0.252" (6.40mm OD)
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Thread Size:
-
Operating Temperature:
-20°C ~ 70°C
Industry Recognized Mating Diameter:
2.50mm ID (0.098"), 5.50mm OD (0.217")
Internal Switch(s):
Single Switch, Normally Closed
Shielding:
Unshielded
Voltage - Rated:
48V
Insulation Color:
-
REACH Status:
REACH Unaffected
Includes:
-
edacadModel:
54-00165 Models
Number of Positions/Contacts:
2 Conductors, 3 Contacts
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/10459297
Package:
Tape & Reel (TR)
Gender:
Male
Connector Type:
Jack
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Body Material:
Brass
Termination:
Solder
standardLeadTime:
16 Weeks
Current Rating (Amps):
6.5 A
Housing Material:
Polyamide (PA9T), Nylon 9T
Body Color:
Black
Ingress Protection:
-
Features:
Board Guide
Mounting Type:
Surface Mount, Right Angle
Mating Length/Depth:
-
Series:
-
Contact Material - Plating:
Silver
Contact Material:
Brass
ECCN:
EAR99

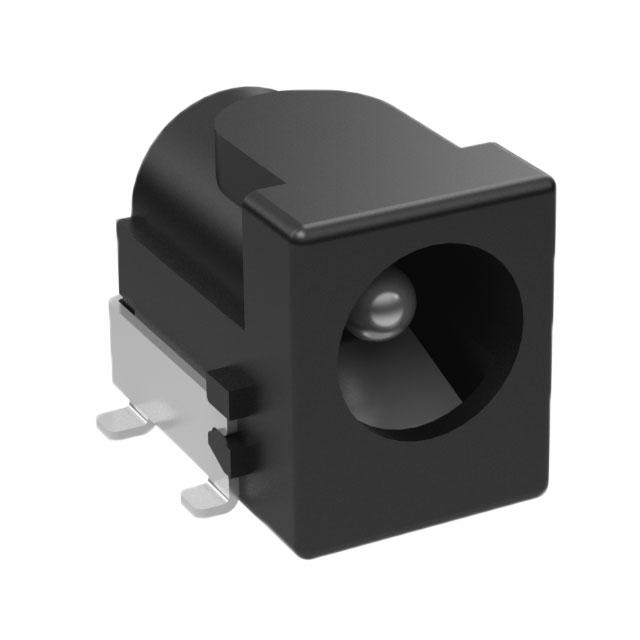

This is manufactured by Tensility International Corp. The manufacturer part number is 54-00165. Its actual diameter is 0.098" (2.50mm id), 0.252" (6.40mm od). It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -20°c ~ 70°c operating temperature range. The product has 2.50mm id (0.098"), 5.50mm od (0.217") industrial recognised mating diameter. Internal switch options: single switch, normally closed. Furthermore, the product is shielded with unshielded. It also exhibits voltage rating of 48v. In addition, it is reach unaffected. The product consists of 2 conductors, 3 contacts positions or contacts. It carries ul94 v-0 of material flammability rating. It is shipped in tape & reel (tr) package . In addition, male is the available "Gender" of the product. jack Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). The product's body is nicely designed from brass materials. The product features solder termination style. It has a long 16 weeks standard lead time. Additionally, the product's output is 6.5 a. The product also features robust polyamide (pa9t), nylon 9t housing material. The body has a classic black colour. The splendid features of the product include board guide. The product is available in surface mount, right angle configuration. While the contact is silver. The product is made from sturdy brass materials. The product is designated with the ear99 code number.
