Actual Diameter:
0.079" (2.00mm ID), 0.236" (6.00mm OD)
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Thread Size:
-
Operating Temperature:
-25°C ~ 70°C
Industry Recognized Mating Diameter:
2.50mm ID (0.098"), 5.50mm OD (0.217")
Internal Switch(s):
Single Switch, Normally Closed
Shielding:
Shielded
Voltage - Rated:
24VDC
Insulation Color:
-
REACH Status:
REACH Unaffected
Includes:
-
edacadModel:
KLDHCX-MM-0202-ATR Models
Number of Positions/Contacts:
2 Conductors, 3 Contacts
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/10246544
Package:
Tape & Reel (TR)
Gender:
Male
Connector Type:
Jack
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Body Material:
-
Termination:
Solder
standardLeadTime:
22 Weeks
Current Rating (Amps):
5 A
Housing Material:
Thermoplastic
Body Color:
Silver
Ingress Protection:
-
Features:
-
Mounting Type:
Board Cutout, Through Hole, Right Angle
Mating Length/Depth:
-
Series:
KLDHCX
Contact Material - Plating:
Gold
Contact Material:
Brass, Phosphor Bronze
Base Product Number:
KLDHCX
ECCN:
EAR99

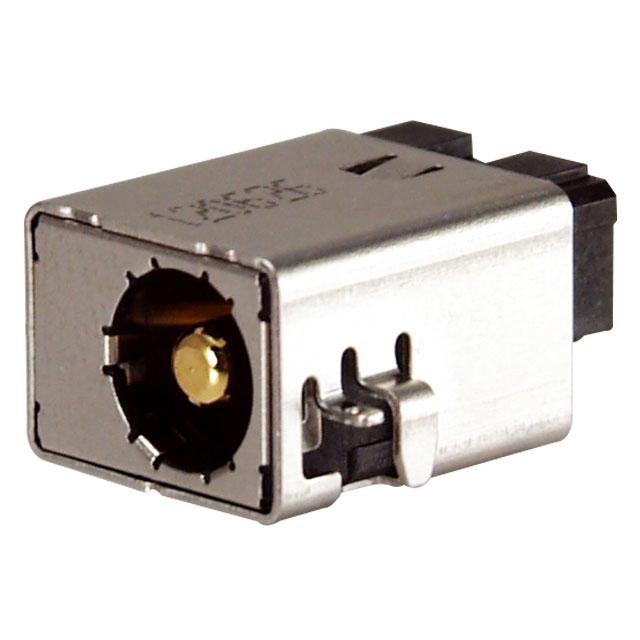

This is manufactured by Kycon, Inc.. The manufacturer part number is KLDHCX-MM-0202-ATR. Its actual diameter is 0.079" (2.00mm id), 0.236" (6.00mm od). It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -25°c ~ 70°c operating temperature range. The product has 2.50mm id (0.098"), 5.50mm od (0.217") industrial recognised mating diameter. Internal switch options: single switch, normally closed. Furthermore, the product is shielded with shielded. It also exhibits voltage rating of 24vdc. In addition, it is reach unaffected. The product consists of 2 conductors, 3 contacts positions or contacts. It carries ul94 v-0 of material flammability rating. It is shipped in tape & reel (tr) package . In addition, male is the available "Gender" of the product. jack Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It has a long 22 weeks standard lead time. Additionally, the product's output is 5 a. The product also features robust thermoplastic housing material. The body has a classic silver colour. The product is available in board cutout, through hole, right angle configuration. The product kldhcx, is a highly preferred choice for users. While the contact is gold. The product is made from sturdy brass, phosphor bronze materials. Moreover, it corresponds to kldhcx, a base product number of the product. The product is designated with the ear99 code number.
