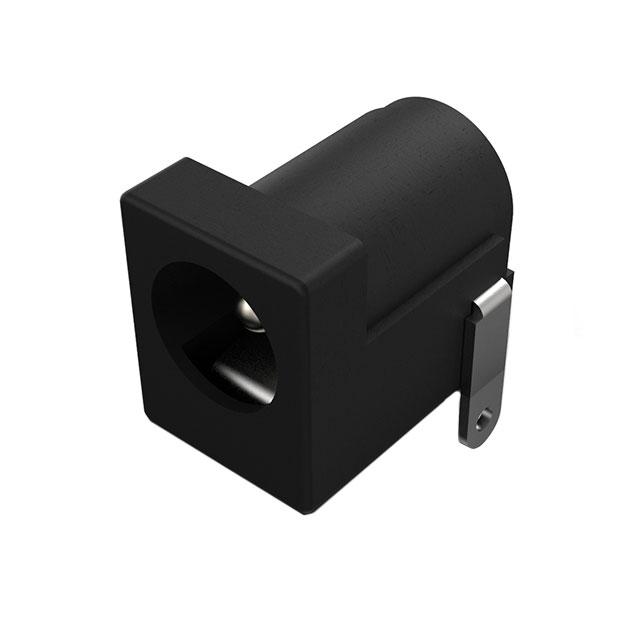

GCT DCJ235-05-A-K1-K

DCJ235-05-A-K1-K GCT
DCJ235-05-A-K1-K
GCT

Product Information

Actual Diameter:
0.093" (2.35mm ID), 0.248" (6.30mm OD)
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Thread Size:
-
Operating Temperature:
-20°C ~ 70°C
Industry Recognized Mating Diameter:
2.40mm ID (0.094"), 5.50mm OD (0.217")
Internal Switch(s):
Single Switch, Normally Closed
Shielding:
Unshielded
Voltage - Rated:
20VDC
Insulation Color:
-
REACH Status:
REACH Unaffected
Includes:
-
edacadModel:
DCJ235-05-A-K1-K Models
Number of Positions/Contacts:
2 Conductors, 3 Contacts
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/9859580
Package:
Bulk
Gender:
Male
Connector Type:
Jack
Moisture Sensitivity Level (MSL):
Not Applicable
Body Material:
-
Termination:
Kinked Pin, Solder Eyelet
standardLeadTime:
6 Weeks
Current Rating (Amps):
5 A
Housing Material:
Polybutylene Terephthalate (PBT)
Body Color:
Black
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole, Right Angle
Mating Length/Depth:
-
Series:
DCJ235-05
Contact Material - Plating:
Silver
Contact Material:
Brass, Phosphor Bronze
Base Product Number:
DCJ235
ECCN:
EAR99
Checking for live stock

This is manufactured by GCT. The manufacturer part number is DCJ235-05-A-K1-K. Its actual diameter is 0.093" (2.35mm id), 0.248" (6.30mm od). It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -20°c ~ 70°c operating temperature range. The product has 2.40mm id (0.094"), 5.50mm od (0.217") industrial recognised mating diameter. Internal switch options: single switch, normally closed. Furthermore, the product is shielded with unshielded. It also exhibits voltage rating of 20vdc. In addition, it is reach unaffected. The product consists of 2 conductors, 3 contacts positions or contacts. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . In addition, male is the available "Gender" of the product. jack Connector type offer robust functionality. Its typical moisture sensitivity level is not applicable. The product features kinked pin, solder eyelet termination style. It has a long 6 weeks standard lead time. Additionally, the product's output is 5 a. The product also features robust polybutylene terephthalate (pbt) housing material. The body has a classic black colour. The product is available in through hole, right angle configuration. The product dcj235-05, is a highly preferred choice for users. While the contact is silver. The product is made from sturdy brass, phosphor bronze materials. Moreover, it corresponds to dcj235, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
DCJ235-05 Product Spec(Datasheets)
pdf icon
DCJ235-05 Drawing(Product Drawings)
pdf icon
GCT EMEA LTD RoHS, REACH, TSCA, CA Prop65(Environmental Information)
