Actual Diameter:
0.098" (2.50mm ID), 0.220" (5.60mm OD)
HTSUS:
8538.90.8180
RoHS Status:
RoHS Compliant
Mounting Feature:
Bulkhead - Front Side Nut
Thread Size:
M8x0.75
Operating Temperature:
-15°C ~ 90°C
Industry Recognized Mating Diameter:
2.50mm ID (0.098"), 5.50mm OD (0.217")
Internal Switch(s):
Single Switch, Normally Closed
Shielding:
Unshielded
Voltage - Rated:
12VDC
Insulation Color:
-
REACH Status:
REACH Unaffected
Includes:
3 pcs - 1 Connector, 1 Nut, 1 Washer
edacadModel:
EJ501B Models
Number of Positions/Contacts:
2 Conductors, 2 Contacts
Material Flammability Rating:
-
edacadModelUrl:
/en/models/2439533
Package:
Bulk
Gender:
Male
Connector Type:
Jack
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Body Material:
Brass
Termination:
Solder Eyelet(s)
standardLeadTime:
22 Weeks
Current Rating (Amps):
5 A
Housing Material:
-
Body Color:
Silver
Ingress Protection:
-
Features:
-
Mounting Type:
Chassis Mount
Mating Length/Depth:
-
Series:
-
Contact Material - Plating:
Silver
Contact Material:
Brass, Copper Alloy
ECCN:
EAR99

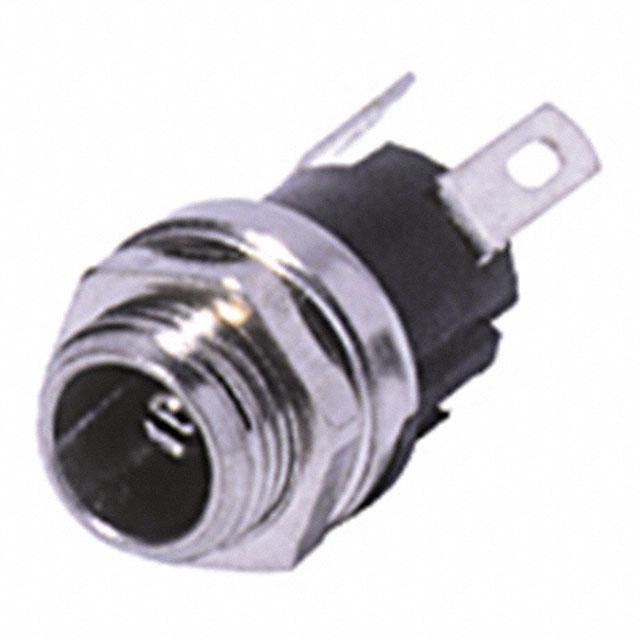

This is manufactured by MPD (Memory Protection Devices). The manufacturer part number is EJ501B. Its actual diameter is 0.098" (2.50mm id), 0.220" (5.60mm od). It is assigned with possible HTSUS value of 8538.90.8180. The product is rohs compliant. The product's mounting feature includes bulkhead - front side nut. It has a typical thread size of m8x0.75. The product has -15°c ~ 90°c operating temperature range. The product has 2.50mm id (0.098"), 5.50mm od (0.217") industrial recognised mating diameter. Internal switch options: single switch, normally closed. Furthermore, the product is shielded with unshielded. It also exhibits voltage rating of 12vdc. In addition, it is reach unaffected. The product is also supplied with 3 pcs - 1 connector, 1 nut, 1 washer. The product consists of 2 conductors, 2 contacts positions or contacts. It is shipped in bulk package . In addition, male is the available "Gender" of the product. jack Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). The product's body is nicely designed from brass materials. The product features solder eyelet(s) termination style. It has a long 22 weeks standard lead time. Additionally, the product's output is 5 a. The body has a classic silver colour. The product is available in chassis mount configuration. While the contact is silver. The product is made from sturdy brass, copper alloy materials. The product is designated with the ear99 code number.
