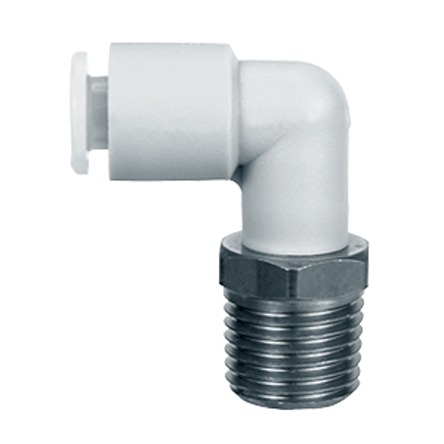

SMC KG Series Male Stud Elbow, M5 x 0.8 to Push In 4 mm, Threaded-to-Tube Connection Style

Enrgtech Part No: ET28369629
|
Manufacturer Part No:
KGL04-M5
|
Manufacturer: SMC

KGL04-M5 SMC KG Series Male Stud Elbow, M5 x 0.8 to Push In 4 mm, Threaded-to-Tube Connection Style

Product Information

Connector B:

Push In 4 mm

Connector A:

M5 x 0.8

Connection Style:

Threaded-to-Tube

Threaded Connection:

M5 x 0.8

Manufacturer Series:

Pneumatic Fitting Type:

Male Stud Elbow

Checking for live stock

The SMC KG Series Male Stud Elbow (KGL04-M5) delivers a precision-engineered solution for converting an M5 × 0.8 threaded port into a 4 mm push-in tube connection, streamlining pneumatic line installations with minimal tooling and maximum reliability. Crafted from SMC’s renowned KG series, this compact elbow fitting ensures a secure, leak-free interface in tight spaces while maintaining consistent airflow performance under varying pressures.

Why Choose KGL04-M5 Male Stud Elbow?

Choosing the KGL04-M5 means investing in a durable, RoHS-compliant fitting that reduces assembly time and maintenance costs. Its push-in 4 mm connector and M5 × 0.8 threaded interface guarantee quick, tool-free installation and removal, making it ideal for both high-volume manufacturing and field service applications.

Product Core Highlights – Features & Benefits

M5 × 0.8 threaded-to-4 mm push-in connection for rapid, tool-free assembly
Compact 90° elbow design optimises layout in restricted pneumatic panels
High-grade brass construction with corrosion-resistant plating for long service life
RoHS-compliant materials ensure environmental safety and regulatory compliance
Precision machining provides a secure, leak-free seal under up to 1 MPa operating pressure
Universal compatibility with standard 4 mm polyurethane tubing
Reduces downtime and maintenance with its easy-release push-in mechanism
Ideal for OEM production lines, automation equipment, and maintenance operations.

Datasheet - KGL04-M5(Technical Reference)
