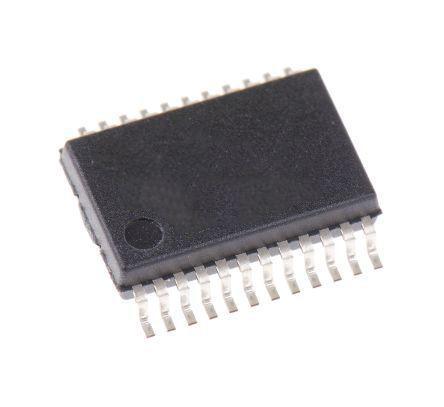

ON Semiconductor NCV7718CDQR2G Intelligent Power Switch, 5mA, 3.15 → 5.25 (Digital) V, 5.5 → 28 (Battery)
Product Information
Automotive Standard:
AEC-Q100
Dimensions:
8.64 x 3.9 x 1.65mm
Mounting Type:
Surface Mount
Height:
1.65mm
Current:
5mA
Width:
3.9mm
Length:
8.64mm
Package Type:
SSOP
Voltage:
3.15 → 5.25 (Digital) V, 5.5 → 28 (Battery) V
Minimum Operating Temperature:
-40 °C
Maximum Operating Temperature:
+150 °C
Pin Count:
24
Function:
Driver - Fully Integrated, Control and Power Stage
Base Part Number:
NCV7718
Detailed Description:
Motor Driver Power MOSFET SPI
Motor Type - AC, DC:
Brushed DC
Mounting Type:
Surface Mount
Current - Output:
550mA
Voltage - Load:
5.5V ~ 28V
Packaging:
Tape & Reel (TR)
Applications:
General Purpose
Operating Temperature:
-40°C ~ 125°C (TJ)
Voltage - Supply:
3.15V ~ 5.25V
Customer Reference:
Package / Case:
24-LSSOP (0.154", 3.90mm Width) Exposed Pad
Interface:
SPI
Output Configuration:
Half Bridge (6)
Technology:
Power MOSFET
Manufacturer:
ON Semiconductor
Checking for live stock
FAQs
Yes. You can also search NCV7718CDQR2G on website for other similar products.
We accept all major payment methods for all products including ET19475471. Please check your shopping cart at the time of order.
You can order ON Semiconductor brand products with NCV7718CDQR2G directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in PMIC - Motor Drivers, Controllers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of ON Semiconductor NCV7718CDQR2G Intelligent Power Switch, 5mA, 3.15 → 5.25 (Digital) V, 5.5 → 28 (Battery). You can also check on our website or by contacting our customer support team for further order details on ON Semiconductor NCV7718CDQR2G Intelligent Power Switch, 5mA, 3.15 → 5.25 (Digital) V, 5.5 → 28 (Battery).
We use our internationally recognized delivery partners UPS/DHL. Collection of ET19475471 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "ON Semiconductor" products on our website by using Enrgtech's Unique Manufacturing Part Number ET19475471.
Yes. We ship NCV7718CDQR2G Internationally to many countries around the world.
This is Intelligent Power Switch 5mA 3.15 → 5.25 (Digital) V 5.5 → 28 (Battery) manufactured by ON Semiconductor. The manufacturer part number is NCV7718CDQR2G. The product complies with automotive standard - aec-q100. The given dimensions of the product include 8.64 x 3.9 x 1.65mm. The product is available in surface mount configuration. In addition, the height is 1.65mm. Features a 5ma current in A. Furthermore, the product is 3.9mm wide. Its accurate length is 8.64mm. The package is a sort of ssop. It carries a 3.15 → 5.25 (digital) v, 5.5 → 28 (battery) v of voltage. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximum operating temperature of +150 °c. It contains 24 pins. It performs basic function of driver - fully integrated, control and power stage. Base Part Number: ncv7718. It features motor driver power mosfet spi. It is a robust brushed dc motor. While, the output current includes 550ma. The given load voltage is 5.5v ~ 28v. In addition, tape & reel (tr) is the available packaging type of the product. The product is widely employed in general purpose. The product has -40°c ~ 125°c (tj) operating temperature range. It has optimum voltage supply of 3.15v ~ 5.25v. Moreover, the product comes in 24-lssop (0.154", 3.90mm width) exposed pad. A bespoke product is spi interface. It boasts half bridge (6) output configuration. This product use power mosfet technology. The on semiconductor's product offers user-desired applications.
