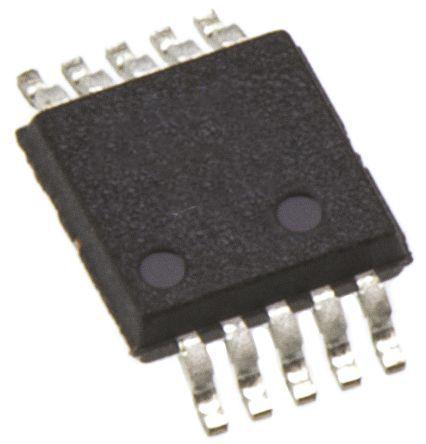

ON Semiconductor NCP12700ADNR2G

NCP12700ADNR2G ON Semiconductor
ON Semiconductor

Product Information

Output Current:
1 (Source) A, 2.8 (Sink) A
Dimensions:
3.1 x 3.1 x 0.95mm
Mounting Type:
Surface Mount
Number of PWM Outputs:
1
Minimum Operating Temperature:
-40 °C
Control Method:
Current
Maximum Switching Frequency:
1 MHz
Height:
0.95mm
Typical Operating Supply Voltage:
100 (Maximum) V
Width:
3.1mm
Length:
3.1mm
Output Voltage:
14 (Clamping) V
Package Type:
MSOP
Maximum Duty Cycle:
84%
Rise Time:
15ns
Maximum Operating Temperature:
+125 °C
Pin Count:
10
Fall Time:
10ns
Control Features:
EN, Frequency Control, Soft Start, Sync
Base Part Number:
NCP12700
Detailed Description:
Converter Offline Flyback Topology 100kHz ~ 1MHz 10-MSOP
Duty Cycle:
80%
Frequency - Switching:
100kHz ~ 1MHz
Mounting Type:
Surface Mount
Fault Protection:
Current Limiting, Open Loop, Over Load, Over Power, Over Temperature, Over Voltage, Short Circuit
Output Isolation:
Isolated
Packaging:
Cut Tape (CT)
Operating Temperature:
-40°C ~ 125°C (TJ)
Customer Reference:
Voltage - Supply (Vcc/Vdd):
9V ~ 20V
Package / Case:
10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package:
10-MSOP
Topology:
Flyback
Internal Switch(s):
No
Manufacturer:
ON Semiconductor
RoHs Compliant
Checking for live stock

This is manufactured by ON Semiconductor. The manufacturer part number is NCP12700ADNR2G. It carries 1 (source) a, 2.8 (sink) a output current. The given dimensions of the product include 3.1 x 3.1 x 0.95mm. The product is available in surface mount configuration. It has 1 PWM output(s) . Whereas, the minimum operating temperature of the product is -40 °c. It features current controlling mechanism. It has a maximum 1 mhz switching frequency. In addition, the height is 0.95mm. It has 100 (maximum) v of typical operating supply voltage. Furthermore, the product is 3.1mm wide. Its accurate length is 3.1mm. Features a 14 (clamping) v output voltage. The package is a sort of msop. It has maximum 84% duty cycle . Whereas, the rise time is 15ns . It has a maximum operating temperature of +125 °c. It contains 10 pins. Its fall time is about 10ns . Possible control features include en, frequency control, soft start, sync. Base Part Number: ncp12700. It features converter offline flyback topology 100khz ~ 1mhz 10-msop. Provides 80% duty cycles. The switching frequency of the standard product is 100khz ~ 1mhz. Fault protection features include current limiting, open loop, over load, over power, over temperature, over voltage, short circuit. Features isolated output isolation. In addition, cut tape (ct) is the available packaging type of the product. The product has -40°c ~ 125°c (tj) operating temperature range. The supply voltage of a bespoke product includes 9v ~ 20v. Moreover, the product comes in 10-tfsop, 10-msop (0.118", 3.00mm width). 10-msop is the supplier device package value. Topology includes flyback. Internal switch options: no. The on semiconductor's product offers user-desired applications.
