Rise Time:
70ns
Output Current:
300 (Source) mA, 500 (Sink) mA
Dimensions:
5 x 4 x 1.5mm
Mounting Type:
Surface Mount
Number of PWM Outputs:
1
Minimum Operating Temperature:
-40 °C
Control Method:
Current
Maximum Switching Frequency:
65 kHz
Height:
1.5mm
Typical Operating Supply Voltage:
28 (Maximum) V
Width:
4mm
Length:
5mm
Output Voltage:
14 (Clamping) V

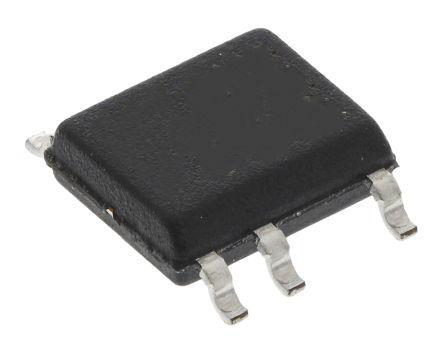

Package Type:
SOIC
Maximum Duty Cycle:
85%
Fall Time:
60ns
Maximum Operating Temperature:
+150 °C
Pin Count:
7
Topology:
Flyback
Manufacturer Standard Lead Time:
18 Weeks
Base Part Number:
NCP12400
Detailed Description:
Converter Offline Flyback Topology 65kHz 7-SOIC
Duty Cycle:
80%
Frequency - Switching:
65kHz
Mounting Type:
Surface Mount
Fault Protection:
Over Load, Over Power, Over Temperature, Over Voltage
Output Isolation:
Isolated
Packaging:
Cut Tape (CT)
Operating Temperature:
-40°C ~ 150°C (TJ)
Supplier Device Package:
7-SOIC
Customer Reference:
Voltage - Supply (Vcc/Vdd):
10.5V ~ 28V
Package / Case:
8-SOIC (0.154", 3.90mm Width), 7 Leads
Voltage - Start Up:
12V
Topology:
Flyback
Internal Switch(s):
No
Manufacturer:
ON Semiconductor
