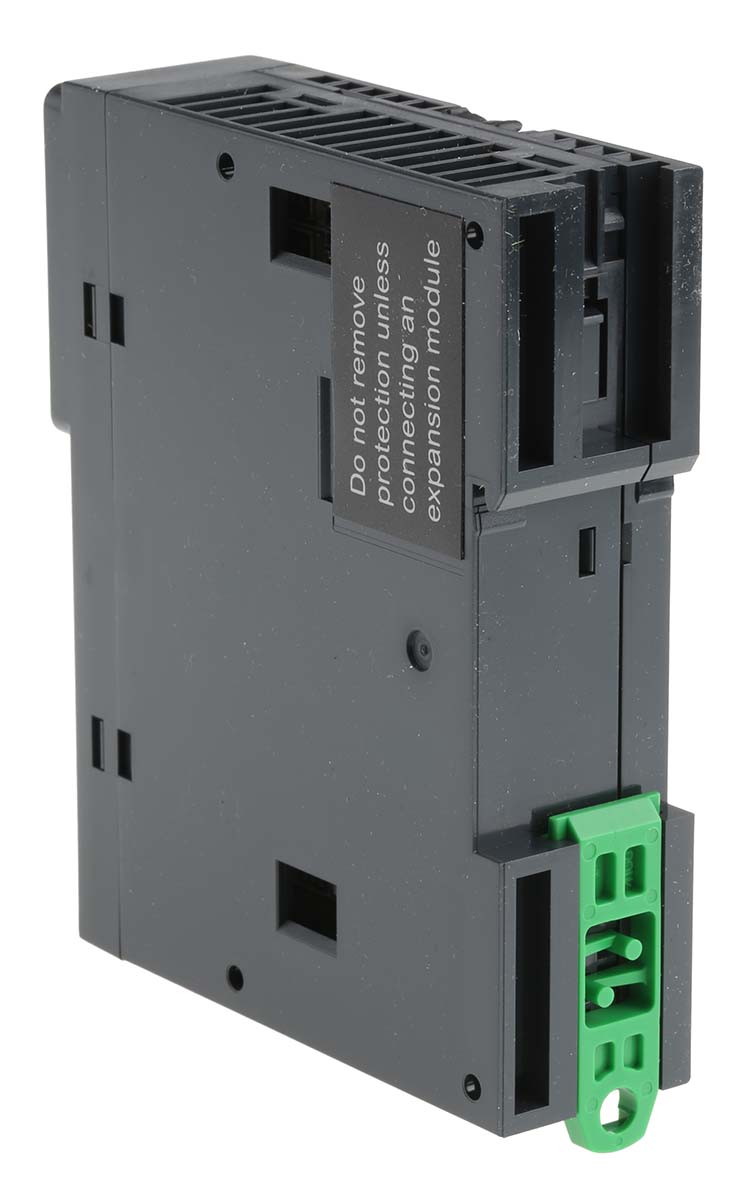

Schneider Electric TM3 Series PLC I/O Module 16 Inputs, 24 V, 90 x 23.6 X 70 mm

Enrgtech Part No: ET13799651
|
Manufacturer Part No:
TM3DI16
|
Manufacturer: Schneider Electric

TM3DI16 Schneider Electric TM3 Series PLC I/O Module 16 Inputs, 24 V, 90 x 23.6 X 70 mm

Product Information

Better World Verification:

Green Premium

Better World Product:

Yes

Dimensions:

90 x 23.6 x 70 mm

Series:

TM3

Accessory Type:

PLC I/O Module

Range:

Modicon TM3

Supply Voltage:

24 V

Input Type:

For Use With:

Modicon M221, Modicon M241, Modicon M251

Maximum Operating Temperature:

+55°C

Cable Length:

50m

Number of Inputs:

Checking for live stock

The Schneider Electric TM3DI16 is a discrete input module designed for expanding the I/O capabilities of Modicon M200 series logic controllers, such as the M221, M241, M251, and M262. This compact accessory provides 16 logic inputs, operating at 24V DC, enabling seamless integration and reliable signal monitoring from various field devices, such as sensors and switches. It features a removable screw terminal block for straightforward installation. It features a modular design that easily interlocks with other Modicon TM3 modules on a DIN rail, enabling flexible, customizable automation architectures.

Benefits of Using the TM3DI16 PLC I/O Module

This module significantly expands the PLC system's monitoring capacity, allowing it to accommodate more field devices without upgrading the main controller. Its compact design saves panel space, and the use of removable screw terminals simplifies wiring, maintenance, and system commissioning, ultimately reducing installation time and complexity.

Standout Features & Application Areas of the TM3DI16

Standout Features:
- Provides 16 discrete 24V DC logic inputs for extensive field device monitoring.
- Removable screw terminal block for easy wiring and maintenance.
- DIN rail mountable with a simple interlocking system for quick module expansion.
- LED per channel for local status signalling of each input.
- Compatible with Modicon M221, M241, M251, and M262 logic controllers.
Application Areas:
- Industrial automation control panels requiring a high density of digital input signals.
- Machine control systems for monitoring limit switches, pushbuttons, and proximity sensors.
- Process and building automation for extending the existing PLC system I/O capacity.

datasheet(Technical Reference)

Product Environmental Profile(Technical Reference)

Catalogue - EcoStruxure(Technical Reference)

Guide - TM3DI16(Technical Reference)

Instruction Sheet - 8066935(Technical Reference)
