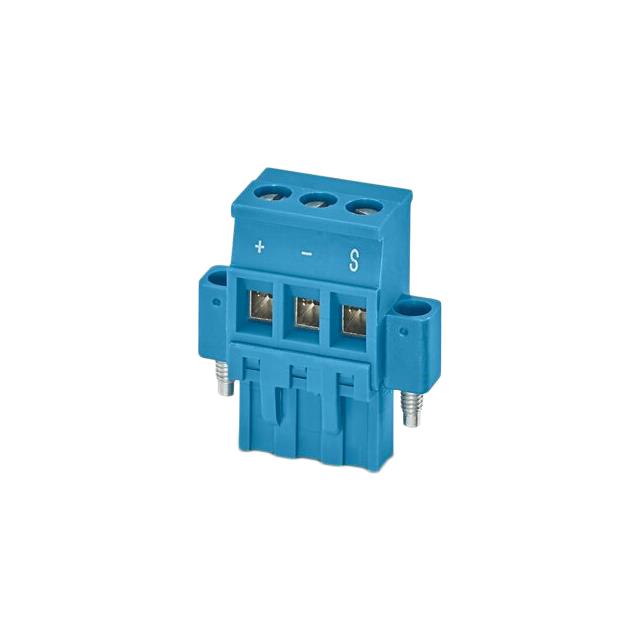

Phoenix Contact 3-pin PCB Terminal Block, 5.08mm Pitch Rows
Product Information
Number of Contacts:
3
Number of Rows:
1
Pluggable Terminal Block Type:
Plug
Mounting Type:
Screw
Pitch:
5.08mm
HTSUS:
8536.90.4000
Termination Style:
Screw - Clamping Yoke (Tension Sleeve)
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-40°C ~ 100°C
Screw Size:
-
Wire Strip Length:
7mm
Type:
Plug, Female Sockets
Number of Positions:
3
Contact Tail Length:
-
Wire Gauge or Range - mm²:
0.2-2.5mm²
Plug Wire Entry:
90°
Insulation Height:
1.024" (26.01mm)
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Current - IEC:
12A
Wire Gauge or Range - AWG:
12-30 AWG
Voltage - UL:
300 V
Torque - Screw:
0.3 Nm (2.6 Lb-In)
standardLeadTime:
8 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
320 V
Ingress Protection:
-
Features:
Mating Flange, Positions Stamped, Retention Latches (Wire Side)
Mounting Type:
Free Hanging (In-Line)
Color:
Blue
Series:
COMBICON MVSTBR
Positions Per Level:
3
Header Orientation:
-
Current - UL:
15 A
Pitch:
0.200" (5.08mm)
Number of Levels:
1
ECCN:
EAR99
Contact Material:
Copper Alloy
Checking for live stock
FAQs
Yes. You can also search 1161208 on website for other similar products.
We accept all major payment methods for all products including ET23140691. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 1161208 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in PCB Terminal Blocks category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 3-pin PCB Terminal Block, 5.08mm Pitch Rows. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 3-pin PCB Terminal Block, 5.08mm Pitch Rows.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET23140691 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET23140691.
Yes. We ship 1161208 Internationally to many countries around the world.
This is 3-pin PCB Terminal Block 5.08mm Pitch Rows manufactured by Phoenix Contact. The manufacturer part number is 1161208. The product contains 3 contacts. It comes in 1 of rows. The product is available in screw configuration. Moreover, the product is 5.08mm. It is assigned with possible HTSUS value of 8536.90.4000. Moreover, it has screw - clamping yoke (tension sleeve) terminal style. The product also features robust polyamide (pa), nylon housing material. The product has -40°c ~ 100°c operating temperature range. The typical length of the wire strip is 7mm. It comes in plug, female sockets configuration. The product carries possible position value of 3. A 0.2-2.5mm² of wire gauge. It also a 90° plug wire entry. 1.024" (26.01mm) of insulation height. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . An IEC current of 12a. While 12-30 awg is its range or wire gauge. While 300 v is the typical voltage of the product. It carries torque - screw values of 0.3 nm (2.6 lb-in). It has a long 8 weeks standard lead time. The mating finish of the contact is tin. The nominal voltage of the product is 320 v. The splendid features of the product include mating flange, positions stamped, retention latches (wire side). The product is available in free hanging (in-line) configuration. It has a classic blue colour. The product combicon mvstbr, is a highly preferred choice for users. It has 3 positions each level. The typical current includes 15 a. Moreover, the product is 0.200" (5.08mm). The product carries 1 levels. The product is designated with the ear99 code number. The product is made from sturdy copper alloy materials.
