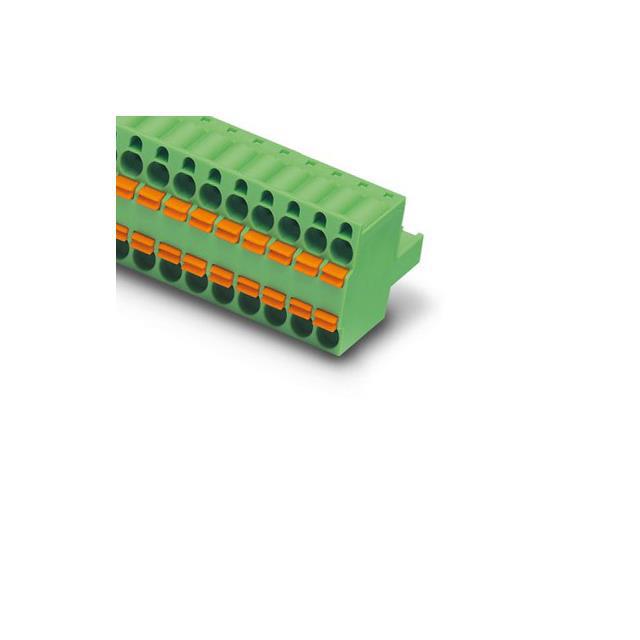

Phoenix Contact COMBICON TFKC Series 5.08mm Pitch Pluggable Terminal Block, Plug, 6 Way
Product Information
Current Rating:
16A
Voltage Rating:
630 V
Series:
TFKC 2.5 HC/ 6-ST-5.08
Colour:
Green
Material:
Polyamide, Tin
Pluggable Terminal Block Type:
Plug
Termination Method:
Spring Cage
Pitch:
5.08mm
Number of Contacts:
6
HTSUS:
8536.90.4000
Termination Style:
Screwless - Leg Spring, Push-In Spring
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-40°C ~ 100°C
Screw Size:
-
Wire Strip Length:
10mm
Type:
Plug, Female Sockets
Number of Positions:
6
Contact Tail Length:
-
Wire Gauge or Range - mm²:
0.2-2.5mm²
Plug Wire Entry:
180°
Insulation Height:
0.870" (22.10mm)
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Current - IEC:
16A
Wire Gauge or Range - AWG:
12-26 AWG
Voltage - UL:
300 V
Torque - Screw:
-
standardLeadTime:
17 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
320 V
Ingress Protection:
-
Features:
Push Button Actuated
Mounting Type:
Free Hanging (In-Line)
Color:
Green
Series:
COMBICON TFKC
Positions Per Level:
6
Header Orientation:
-
Current - UL:
16 A
Pitch:
0.200" (5.08mm)
Number of Levels:
1
ECCN:
EAR99
Contact Material:
Copper Alloy
Checking for live stock
FAQs
Yes. You can also search 1969153 on website for other similar products.
We accept all major payment methods for all products including ET14101944. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 1969153 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in PCB Terminal Blocks category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact COMBICON TFKC Series 5.08mm Pitch Pluggable Terminal Block, Plug, 6 Way. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact COMBICON TFKC Series 5.08mm Pitch Pluggable Terminal Block, Plug, 6 Way.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14101944 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14101944.
Yes. We ship 1969153 Internationally to many countries around the world.
This is COMBICON TFKC Series 5.08mm Pitch Pluggable Terminal Block Plug 6 Way manufactured by Phoenix Contact. The manufacturer part number is 1969153. The product has a current rating of 16a. Moreover, the product has a nominal 630 v voltage rating. The product tfkc 2.5 hc/ 6-st-5.08, is a highly preferred choice for users. It has a decent green colour. The product is made from highly stable and reliable polyamide, tin. It allows spring cage termination method. Moreover, the product is 5.08mm. The product contains 6 contacts. It is assigned with possible HTSUS value of 8536.90.4000. Moreover, it has screwless - leg spring, push-in spring terminal style. The product also features robust polyamide (pa), nylon housing material. The product has -40°c ~ 100°c operating temperature range. The typical length of the wire strip is 10mm. It comes in plug, female sockets configuration. The product carries possible position value of 6. A 0.2-2.5mm² of wire gauge. It also a 180° plug wire entry. 0.870" (22.10mm) of insulation height. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . An IEC current of 16a. While 12-26 awg is its range or wire gauge. While 300 v is the typical voltage of the product. It has a long 17 weeks standard lead time. The mating finish of the contact is tin. The nominal voltage of the product is 320 v. The splendid features of the product include push button actuated. The product is available in free hanging (in-line) configuration. It has a classic green colour. The product combicon tfkc, is a highly preferred choice for users. It has 6 positions each level. The typical current includes 16 a. Moreover, the product is 0.200" (5.08mm). The product carries 1 levels. The product is designated with the ear99 code number. The product is made from sturdy copper alloy materials.
