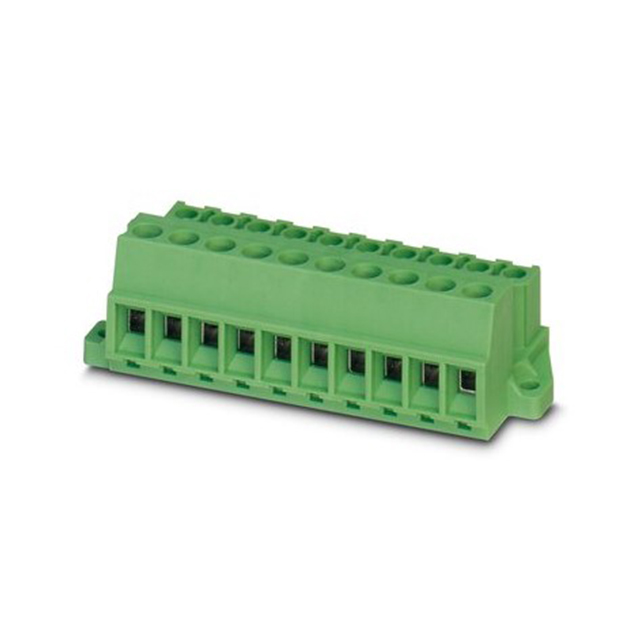

Phoenix Contact 1824175
Product Information
Current Rating:
12A
Voltage Rating:
630 V
Series:
MSTBU 2.5/ 7-STD-5.08
Colour:
Green
Material:
Polyamide, Tin
Pluggable Terminal Block Type:
Plug
Termination Method:
Screw
Pitch:
5.08mm
Number of Contacts:
7
HTSUS:
8536.90.4000
RoHS Status:
RoHS Compliant
Termination Style:
Screw
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-
Screw Size:
M3
Wire Strip Length:
7mm
Type:
Receptacle, Female Sockets
Number of Positions:
7
Wire Gauge or Range - mm²:
0.2-2.5mm²
Plug Wire Entry:
-
Insulation Height:
0.669" (17.00mm)
edacadModel:
1824175 Models
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/4458266
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
12A
Contact Tail Length:
-
Voltage - UL:
300 V
Torque - Screw:
0.5-0.6 Nm (4.4-5.3 Lb-In)
standardLeadTime:
6 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
630 V
Ingress Protection:
-
Features:
Mounting Flange, Retention Latches
Mounting Type:
Board Mount
Color:
Green
Series:
COMBICON MSTBU
Positions Per Level:
7
Header Orientation:
-
Current - UL:
10 A
Wire Gauge or Range - AWG:
12-30 AWG
Pitch:
0.200" (5.08mm)
Number of Levels:
1
Contact Material:
-
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 1824175 on website for other similar products.
We accept all major payment methods for all products including ET13857717. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 1824175 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in PCB Terminal Blocks category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 1824175. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 1824175.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13857717 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13857717.
Yes. We ship 1824175 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 1824175. The product has a current rating of 12a. Moreover, the product has a nominal 630 v voltage rating. The product mstbu 2.5/ 7-std-5.08, is a highly preferred choice for users. It has a decent green colour. The product is made from highly stable and reliable polyamide, tin. It allows screw termination method. Moreover, the product is 5.08mm. The product contains 7 contacts. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs compliant. Moreover, it has screw terminal style. The product also features robust polyamide (pa), nylon housing material. It is available in screw size of m3. The typical length of the wire strip is 7mm. It comes in receptacle, female sockets configuration. The product carries possible position value of 7. A 0.2-2.5mm² of wire gauge. 0.669" (17.00mm) of insulation height. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). An IEC current of 12a. While 300 v is the typical voltage of the product. It carries torque - screw values of 0.5-0.6 nm (4.4-5.3 lb-in). It has a long 6 weeks standard lead time. The mating finish of the contact is tin. The nominal voltage of the product is 630 v. The splendid features of the product include mounting flange, retention latches. The product is available in board mount configuration. It has a classic green colour. The product combicon mstbu, is a highly preferred choice for users. It has 7 positions each level. The typical current includes 10 a. While 12-30 awg is its range or wire gauge. Moreover, the product is 0.200" (5.08mm). The product carries 1 levels. The product is designated with the ear99 code number.
