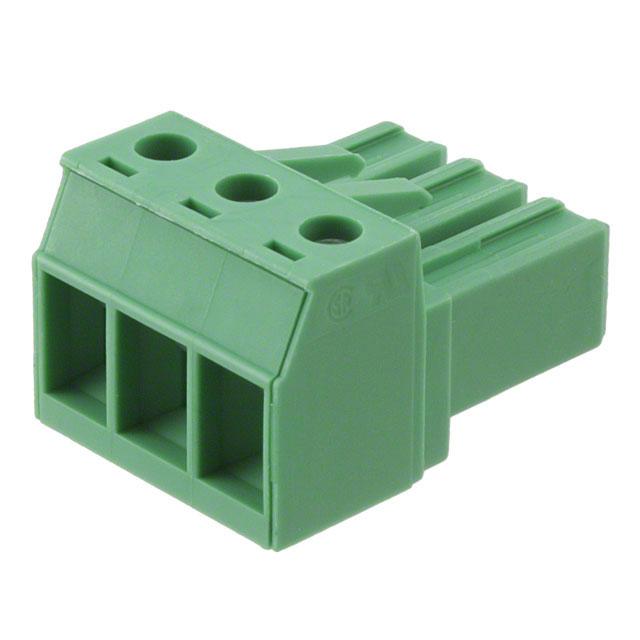

Phoenix Contact 1804917
Product Information
Current Rating:
20A
Mounting Type:
Cable Mount
Voltage Rating:
1 kV
Series:
PC 4/ 3-ST-7.62
Colour:
Green
Material:
Nylon
Pluggable Terminal Block Type:
Plug
Termination Method:
Screw
Contact Plating:
Tin
Pitch:
7.62mm
Number of Contacts:
3
HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Termination Style:
Screw - Rising Cage Clamp
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-
Screw Size:
M3
Wire Strip Length:
7mm
Type:
Plug, Female Sockets
Number of Positions:
3
Contact Tail Length:
-
Wire Gauge or Range - mm²:
0.2-4mm²
Plug Wire Entry:
180°
Insulation Height:
0.713" (18.10mm)
REACH Status:
REACH Unaffected
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
20A
Wire Gauge or Range - AWG:
10-30 AWG
Voltage - UL:
600 V
Torque - Screw:
0.5-0.6 Nm (4.4-5.3 Lb-In)
standardLeadTime:
8 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
1 kV
Ingress Protection:
-
Features:
Retention Latches (Non-Wire Side)
Mounting Type:
Free Hanging (In-Line)
Color:
Green
Series:
COMBICON PC
Positions Per Level:
3
Header Orientation:
-
Current - UL:
5 A
Pitch:
0.300" (7.62mm)
Number of Levels:
1
Contact Material:
-
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 1804917 on website for other similar products.
We accept all major payment methods for all products including ET11845558. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 1804917 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in PCB Terminal Blocks category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 1804917. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 1804917.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11845558 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11845558.
Yes. We ship 1804917 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 1804917. The product has a current rating of 20a. The product is available in cable mount configuration. Moreover, the product has a nominal 1 kv voltage rating. The product pc 4/ 3-st-7.62, is a highly preferred choice for users. It has a decent green colour. The product is made from highly stable and reliable nylon. It allows screw termination method. The high-quality tin is used as contact plating material. Moreover, the product is 7.62mm. The product contains 3 contacts. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. Moreover, it has screw - rising cage clamp terminal style. The product also features robust polyamide (pa), nylon housing material. It is available in screw size of m3. The typical length of the wire strip is 7mm. It comes in plug, female sockets configuration. The product carries possible position value of 3. A 0.2-4mm² of wire gauge. It also a 180° plug wire entry. 0.713" (18.10mm) of insulation height. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). An IEC current of 20a. While 10-30 awg is its range or wire gauge. While 600 v is the typical voltage of the product. It carries torque - screw values of 0.5-0.6 nm (4.4-5.3 lb-in). It has a long 8 weeks standard lead time. The mating finish of the contact is tin. The nominal voltage of the product is 1 kv. The splendid features of the product include retention latches (non-wire side). The product is available in free hanging (in-line) configuration. It has a classic green colour. The product combicon pc, is a highly preferred choice for users. It has 3 positions each level. The typical current includes 5 a. Moreover, the product is 0.300" (7.62mm). The product carries 1 levels. The product is designated with the ear99 code number.
