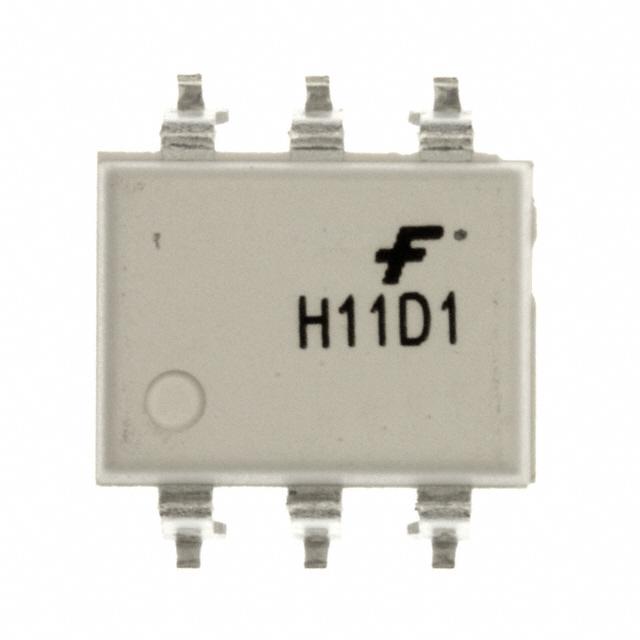

onsemi H11D1SM
Product Information
HTSUS:
8541.49.8000
RoHS Status:
ROHS3 Compliant
Current - Output / Channel:
100mA
Vce Saturation (Max):
400mV
Operating Temperature:
-40°C ~ 100°C
Input Type:
DC
Package / Case:
6-SMD, Gull Wing
edacadModel:
H11D1SM Models
Current Transfer Ratio (Min):
20% @ 10mA
Current Transfer Ratio (Max):
-
Rise / Fall Time (Typ):
-
REACH Status:
REACH Unaffected
Output Type:
Transistor with Base
Current - DC Forward (If) (Max):
80 mA
Number of Channels:
1
edacadModelUrl:
/en/models/1793933
Voltage - Output (Max):
300V
Package:
Tube
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Voltage - Forward (Vf) (Typ):
1.15V
standardLeadTime:
6 Weeks
Voltage - Isolation:
4170Vrms
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
6-SMD
Turn On / Turn Off Time (Typ):
5µs, 5µs
Base Product Number:
H11D1
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search H11D1SM on website for other similar products.
We accept all major payment methods for all products including ET21522069. Please check your shopping cart at the time of order.
You can order onsemi brand products with H11D1SM directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Optoisolators - Transistor, Photovoltaic Output category are shipped in lowest possible time.
You will get a confirmation email regarding your order of onsemi H11D1SM. You can also check on our website or by contacting our customer support team for further order details on onsemi H11D1SM.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET21522069 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "onsemi" products on our website by using Enrgtech's Unique Manufacturing Part Number ET21522069.
Yes. We ship H11D1SM Internationally to many countries around the world.
This is manufactured by onsemi. The manufacturer part number is H11D1SM. It is assigned with possible HTSUS value of 8541.49.8000. The product is rohs3 compliant. It carries 100ma output or channel current. Feature a maximum Vce saturation of 400mv. The product has -40°c ~ 100°c operating temperature range. It carries dc input type. Moreover, the product comes in 6-smd, gull wing. It has a minimum current transfer ratio of 20% @ 10ma. In addition, it is reach unaffected. Furthermore, it has atransistor with base output. The maximum DC forward current of the product is 80 ma. It is supplied with 1 channels. While the maximum output voltage is 300v. It is shipped in tube package . Its typical moisture sensitivity level is 1 (unlimited). The typical forward voltage (Vf) of the product is 1.15v. It has a long 6 weeks standard lead time. 4170vrms of isolation voltage. The product is available in surface mount configuration. 6-smd is the supplier device package value. The product has a typical turn On and Off time of 5µs, 5µs. Moreover, it corresponds to h11d1, a base product number of the product. The product is designated with the ear99 code number.
