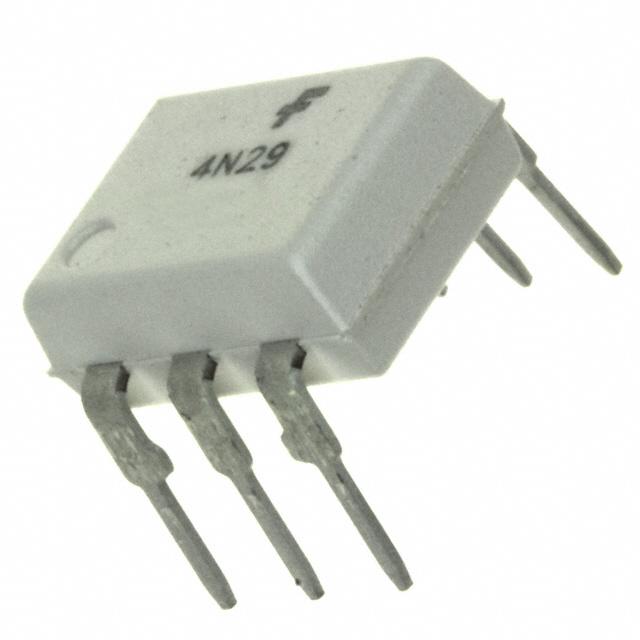

onsemi 4N29M
Product Information
HTSUS:
8541.49.8000
RoHS Status:
ROHS3 Compliant
Current - Output / Channel:
150mA
Vce Saturation (Max):
1V
Operating Temperature:
-40°C ~ 100°C
Input Type:
DC
Package / Case:
6-DIP (0.300", 7.62mm)
Current - DC Forward (If) (Max):
80 mA
Current Transfer Ratio (Min):
100% @ 10mA
Current Transfer Ratio (Max):
-
Rise / Fall Time (Typ):
-
REACH Status:
REACH Unaffected
Output Type:
Darlington with Base
Number of Channels:
1
Voltage - Output (Max):
30V
Package:
Tube
Moisture Sensitivity Level (MSL):
Not Applicable
Voltage - Forward (Vf) (Typ):
1.2V
standardLeadTime:
10 Weeks
Voltage - Isolation:
4170Vrms
Mounting Type:
Through Hole
Series:
-
Supplier Device Package:
6-DIP
Turn On / Turn Off Time (Typ):
5µs, 40µs (Max)
Base Product Number:
4N29
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 4N29M on website for other similar products.
We accept all major payment methods for all products including ET21497018. Please check your shopping cart at the time of order.
You can order onsemi brand products with 4N29M directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Optoisolators - Transistor, Photovoltaic Output category are shipped in lowest possible time.
You will get a confirmation email regarding your order of onsemi 4N29M. You can also check on our website or by contacting our customer support team for further order details on onsemi 4N29M.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET21497018 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "onsemi" products on our website by using Enrgtech's Unique Manufacturing Part Number ET21497018.
Yes. We ship 4N29M Internationally to many countries around the world.
This is manufactured by onsemi. The manufacturer part number is 4N29M. It is assigned with possible HTSUS value of 8541.49.8000. The product is rohs3 compliant. It carries 150ma output or channel current. Feature a maximum Vce saturation of 1v. The product has -40°c ~ 100°c operating temperature range. It carries dc input type. Moreover, the product comes in 6-dip (0.300", 7.62mm). The maximum DC forward current of the product is 80 ma. It has a minimum current transfer ratio of 100% @ 10ma. In addition, it is reach unaffected. Furthermore, it has adarlington with base output. It is supplied with 1 channels. While the maximum output voltage is 30v. It is shipped in tube package . Its typical moisture sensitivity level is not applicable. The typical forward voltage (Vf) of the product is 1.2v. It has a long 10 weeks standard lead time. 4170vrms of isolation voltage. The product is available in through hole configuration. 6-dip is the supplier device package value. The product has a typical turn On and Off time of 5µs, 40µs (max). Moreover, it corresponds to 4n29, a base product number of the product. The product is designated with the ear99 code number.
